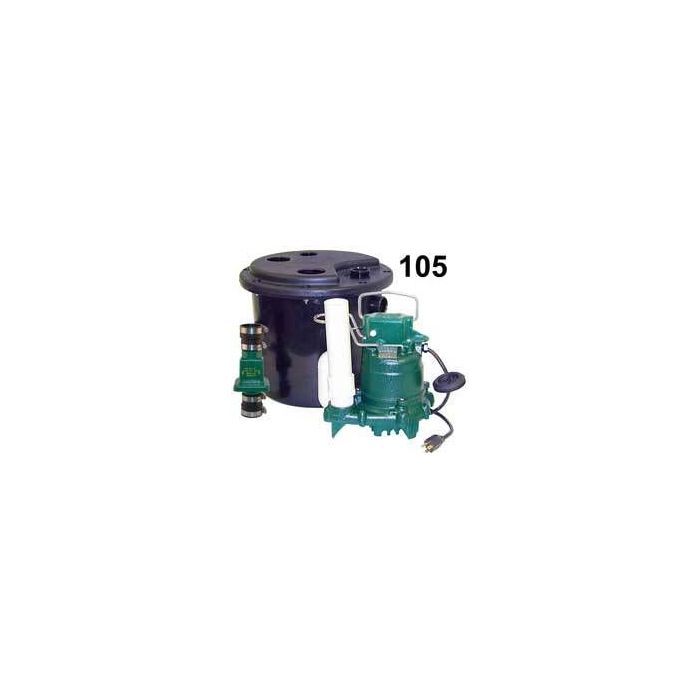

Zoeller 105-0001 105 Drain Pump

Removes water from areas where gravity flow is not available.

• Applications include laundry tray pump, wet bar sink, lavatory, air conditioning condensate and dehumidifier water removal. Can also be used in conjunction with dishwashers and garbage disposal applications.
• No inlet filters or screens to clean
• Optional top or side inlet
• Can be installed with internal trap
• Automatic pumps with tank cord seals
• All hardware for easy assembly
• Polypropylene basin and lid
• Internal discharge pipe to lid (trap supplied by others)
• Check valve (30-0181, not included with model 104)
• Contact factory for additional inlet option or high head applications
• Easy installation, no need to dig a sump
• 132 comes preassembled

Drain Pump Series    Model Pump with Basin
        104*                          M72
        105                            M53
        110                            M55
        115                            M57
        120                            M59
        131                            M98
        132*                          M72

Pump features (models 53, 55, 57, 59, 98):

• Passes laundry lint
• Automatic, float operated mechanical switch
• 115V/1 Ph, all drain pump series
• 9 ft. UL listed 3-wire cord and plug (15 ft. cord standard on model 98)
• Stainless steel screws, guard, handle and switch arm
• Passes ½” spherical solids
• 1 ½” NPT discharge
• 1550 RPM, 60 Hz on 50 series models
• 1725 RPM on model 98
• Non-clogging vortex impeller
• Glass-filled, polypropylene base with built in strainer on M53 and M55.
• Model 59, all bronze construction
• Models 57 and 98 all cast iron construction
• Temperature rated 130°F
• UL and cCSAus listed pump

Model 72:

• Passes laundry lint
• 115V/1 PH, all drain pump series
• 9 ft. UL listed 3-wire cord and plug
• Stainless steel screws, switch arm and lower motor housing
• Oil free
• Passes 3/8” spherical solids
• 1 ½” NPT discharge
• 3400 RPM
• Non-clogging vortex impeller
• Temperature rated 110°F
• cCSAus listed pump

Basin:

• Polypropylene construction
• Corrosion resistant
• High capacity
• Gasket sealed polypropylene lid
• 2” NPT vent
• 1 ½” NPT discharge
• 1 ½” compression slip fit for top and side intake Note: 132 comes preassembled, for side inlet only
• Threaded connections for easy installation
• May be installed with internal trap for space savings
• Gas tight cover
• Temperature rated 130°F
• Fits under most sinks
• Basin passes 10’stack test – Models 104 and 132 will not pass 10’ stack test

Check valve (excluding model 104)(30-0181)

• “Full Flow” design
• 1 ½” or 1 ¼: slip x slip union
• PVC construction
• For additional specifications, see FM0217

?
