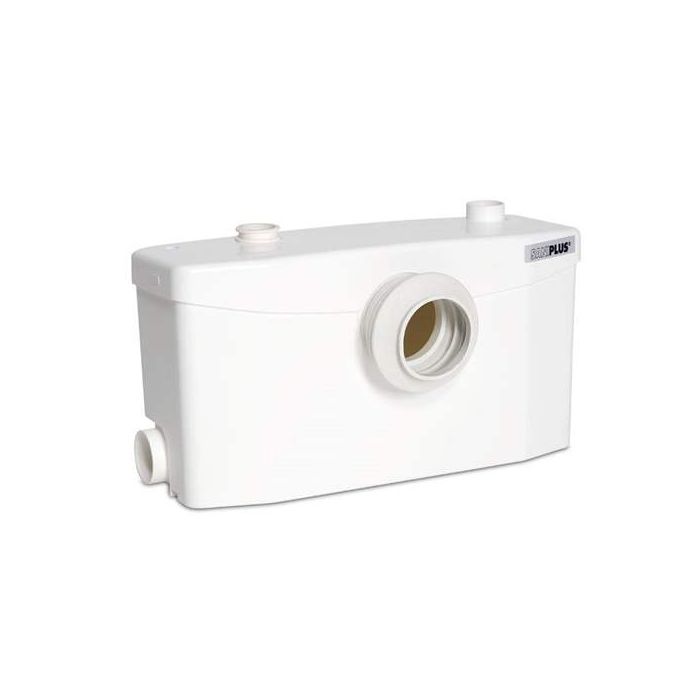

Saniflo 002 Saniplus Macerating Pump Only in White

• The macerator/pump is connected to the spigot of a horizontal rear discharge toilet.

• The toilet tank SANITANK005 sold separate is connected to the water supply.

• The macerator/pump is connected to the small diameter discharge pipe work.

• Durable chrome plated body with tamperproof screws and solid bronze valve body

• The macerator/pump is connected to the electrical supply.

• Dimensions (Height x Width x Depth) - 10-5/8" x 20" x 7"

Round Toilet Bowl :SANI083 Sold Separate-

• Vitreous china tank and bowl with round front

• 1.28 gpf Watersense toilet

• 16-3/4 inches (seating height)

• 26-1/2 inches (overall depth)

• Insulated tank prevent condensation

• The flush valve has a silicone flapper

• Water level mark applied tthe overflow tube

Enlongated Toilet Bowl : SANI087 Sold Separate-

• Vitreous china tank and elongated bowl

• 1.28 gpf Watersense toilet

• 16-3/4 inches (seating height) ADA Compliant

• 28-1/2 inches (overall depth)

• Insulated tank prevent condensation

• The flush valve has a silicone flapper

• Water level mark applied tthe overflow tube

Extension Pipe : SANI030 Sold Separate-

• Pipe is 16" in length and one side is pushed onto the spigot of the toilet and the other side, slips inside the macerator connection

• When using the extension pipe, the toilet bowl should be raised 0.375" for additional gravity flow toward the macerator box

Sanialarm :-

• The Sanialarm has a level pressure switch that triggers an alarm fixed on the top of the unit if the volume of water exceeds the maximum allowed level

• Electrical supply: 2 x 1, 5 V

Descaler :-

• Concentrated solution for optimum cleaning power

• Harmless to ceptic tank operation

• Cleans and disinfects
