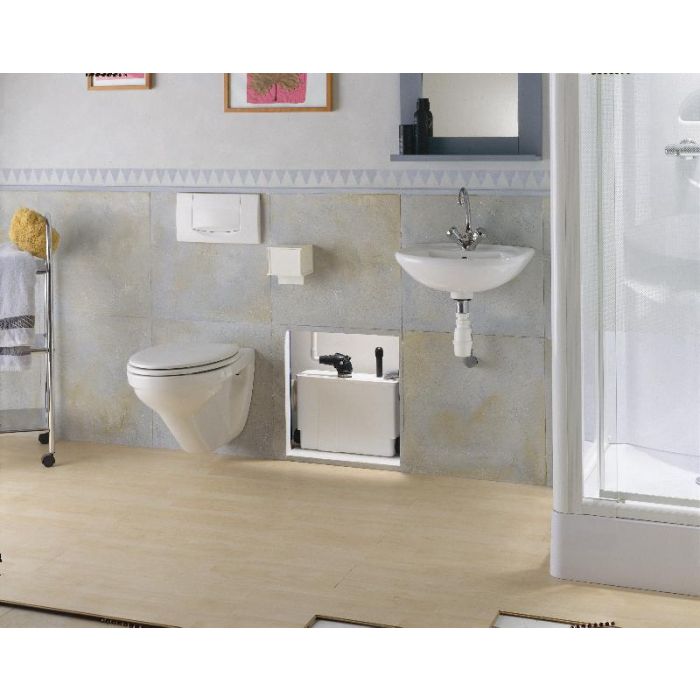

Saniflo 011 Sanipack Macerating Pump For In Wall Frame System In White

The Sanipack is simplicity itself to install; there are just four connections.

• The macerator/pump is connected to the discharge pipe coming from a wall hung toilet
• The toilet tank is connected to the water supply
• The macerator/pump is connected to the small diameter discharge pipe work
• The macerator/pump is connected to the electrical supply

Macerating Pump :-

• Vertical pumping up to 9-Feet and 100-Feet horizontally
• Easy to conceal with versatile and quiet operation
• Discharge Pipe Diameter (in) : 3/4"
• Discharge Rate at Max. Height (gpm) : 13
• Electrical Supply (V) : 115
• Maximum Temperature (°F) : 104
• Min. Gravity Fall on Horizontal Run : 1/4" per foot
• Water Consumption (gallons) : Depends on water closet
• Dimensions (Height x Width x Depth) - 11" x 16¾" x 4¾"




Descaler :-

• Concentrated solution for optimum cleaning power
• Harmless to ceptic tank operation
• Cleans and disinfects

Sanialarm :-

• Alarm for macerating units and gray water pumps
• The Sanialarm has a level pressure switch that triggers an alarm fixed on the top of the unit if the volume of water exceeds the maximum allowed level
• Electrical supply: 2 x 1, 5 V
