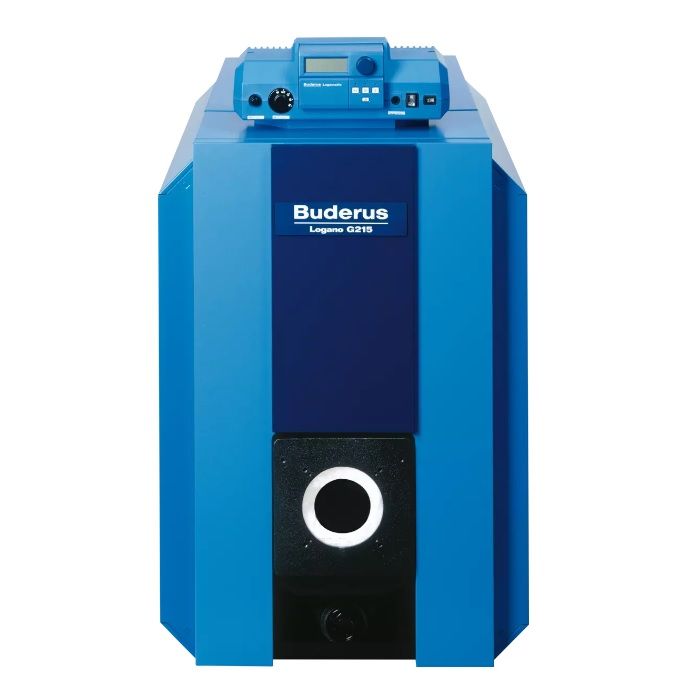

Buderus 7738000112 G215 Series 196 Input MBtu Logano Thermostream Oil-Fired Boiler (Knockdown)


In Stock. Ships in 1-7 Business Days.

Retail : $3,878.00 - $621.64 =
$3,256.36 You Save (16%)

- +

Product details

Its Construction Consists of a Full Size Burner Swing Door for Easy Access to the Boiler Interior and Burner and a Deluxe, Heavy Gauge Blue Enameled Jacket for a Clean Finished Appearance; Eliminates "Hot and Cold Spots" in the Boiler; Minimizes Stresses Normally Caused by Rapid Temperature Changes; Operates at Low Return Water Temperatures; Balances Water Flow through All Boiler Sections; EnergyStar; Rear Tappings and Flue Connection to Streamline Appearance; Baffles and Clips for Adjusting Stack Temperatures; Full Swing Burner Door Hinged on Either the Left or Right Allowing for Easy Access; Front Access Plugs Permit Flushing of the Boiler's Interior; Buderus Offers a Full Range of High Efficiency Indirect Water Tanks to Compliment Your Boiler

  • DOE Rating (BTU): 171,000
  • Net IBR Rating (BTU): 149,000
  • Oil Firing Rate (GPH): 1.4
  • Efficiency (AFUE): 86.2%
  • Boiler Type: Non-Condensing (cast-iron heat exchanger)
  • Number of Sections: 4
  • Fuel Type: #2 Oil
  • System Type: Hydronic (Hot Water)
  • Boiler Connections: 1-1/2" NPT
  • Max. Working Pressure: 58 psi
  • Max. Output Water Temperature: 194°F
  • Vent Size: 6"
  • Vent Material: Regular Chimney Pipe or Flexible Stainless Steel (see Literature for tips & details)
  • Mounting Type: Floor-standing
  • Dimensions (Depth x Width x Height): 31" x 23-1/2" x 34-3/4"
  • Recommended Clearance: 15" side, 20" rear
  • Weight (lbs): 500
  • Water Volume (gallons): 16.1.
See All Bosch Products

Specification Sheet

Basic Information
MPN ? Manufacturer Part Number 7738000112
Manufacturer Bosch
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. G215 Series
Dimensions and Measurements
BTU Input 171,000
AFUE 86%
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 34-3/4"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 23-1/2"
Characteristics and Features
Material ? The material(s) used in the construction of the product. Cast Iron
