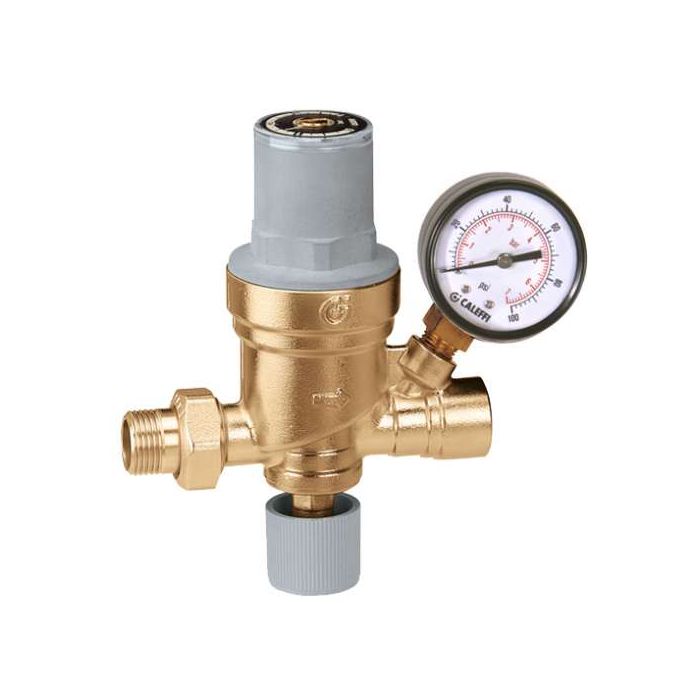

Caleffi 553642A 553 Series Autofill 1/2" NPT Inlet X 1/2" NPT Outlet with Pressure Gauge

SKU
553642A

In Stock. Ships in 1-7 Business Days.

Retail : $172.00 - $61.92 =
$110.08 You Save (36%)
- +

Product details

The automatic filling valve is a device consisting of a pressure reducing valve with compensating seat, visual system pressure setting indicator, an inlet filter, anti-scale internal parts, a shut-off valve (round knob on bottom) and a check valve. It is installed on the water inlet piping in sealed heating systems, and its main function is to maintain the pressure of the system at a set value, automatically filling up with water as required. The valve is pre-adjustable, meaning it can be set to the desired pressure value before the system charging phase. After installation, during the filling or topping-off phase, the water feed will stop when the set pressure is reached. This valve fills 50% faster than other valves. There are no levers to flip or valve to close.

FEATURES
  • Pre-adjustable, automatic filling valve.
  • Anti-scale with visual system pressure indicator.
  • Complete with manual shut-off valve, strainer and check valve.
  • Brass body.
  • Max inlet pressure: 230 psi
  • Max working temp: 150ËšF
  • Setting pressure range: 3 - 60 psi
  • Preset outlet pressure: 15 psi
  • Pressure gauge scale: 0 - 60 psi / 0 - 4 bar
Caleffi
See All Caleffi Products

Specification Sheet

Basic Information
MPN ? Manufacturer Part Number 553642A
UPC / GTIN 8016615504927
Manufacturer Caleffi
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. 553 Series
Dimensions and Measurements
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 3"
Length (Inches) ? The distance of the product's longest side, measured in inches. 6.5"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 4.25"
Weight ? Weight 1.80
Characteristics and Features
Material ? The material(s) used in the construction of the product. Brass
