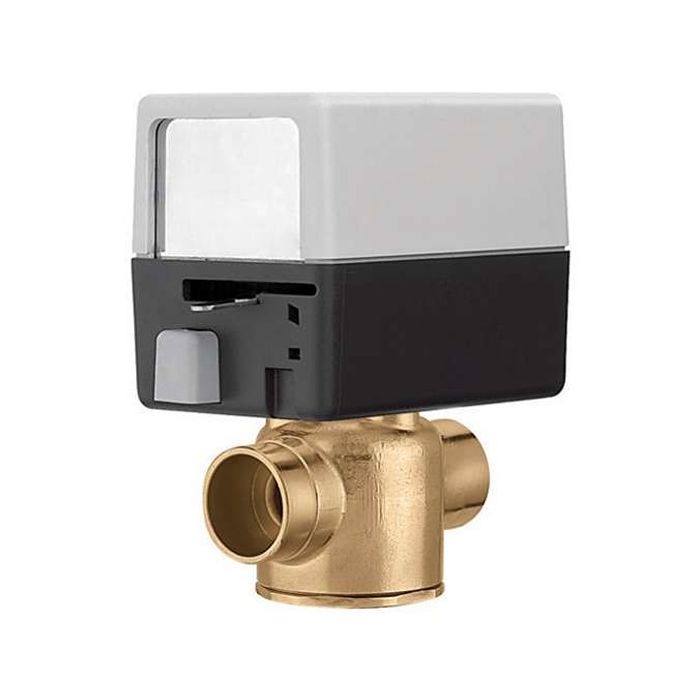

Caleffi Z46 Z4 Series Motorized Zone Valves Sweat and Flare Five Year Warranty

The Z-one a two position spring return zone valve is used in heating and air conditioning systems. The Z-one series consist of a Z1 actuator which is easily attached to a Z2 (2 way) or Z3 (3-way) valve body. Z1 actuator is equipped with or without auxiliary switch and is UL Listed for plenum installations. Z1 actuator + Z2 body = Z4 combination and Z1 actuator + Z3 body = Z6 combination.

• Two way zone valve.
• Spring return.
• Normally closed actuator: code Z111000 Auxiliary micro-switch.
• Max body pressure: 300 psi Temp range: 32˚ - 240˚F
• Suitable Fluids:- water, 50% max glycol, 15 psi max steam
• Power Supply:- 24 VAC
• Power Consumption: 5 W, 7 VA
• Rating of auxiliary micro switch contacts: 0.0 A min, 0.4 A max 24 V (24 V only)
• 18" wire lead connection.
