Weil-Mclain 383-500-734 Ultra 105 Input MBtu 94% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent

SKU
383500734

In Stock. Ships in 1-7 Business Days.

Click Here for Shipping Cost by Destination
Retail : $4,823.00 - $1012.83 =
$3,810.17 You Save (21%)
105,000
Weil-Mclain 383-500-732 Ultra 80 Input MBtu 93.5% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Selected
Weil-Mclain 383-500-734 Ultra 105 Input MBtu 94% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-735 Ultra 155 Input MBtu 93.5% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-736 Ultra 230 Input MBtu 94.1% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-737 Ultra 299 Input MBtu 92.5% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-738 Ultra 399 Input MBtu 91.7% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
- +
105,000
Weil-Mclain 383-500-732 Ultra 80 Input MBtu 93.5% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Selected
Weil-Mclain 383-500-734 Ultra 105 Input MBtu 94% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-735 Ultra 155 Input MBtu 93.5% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-736 Ultra 230 Input MBtu 94.1% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-737 Ultra 299 Input MBtu 92.5% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent
Weil-Mclain 383-500-738 Ultra 399 Input MBtu 91.7% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent

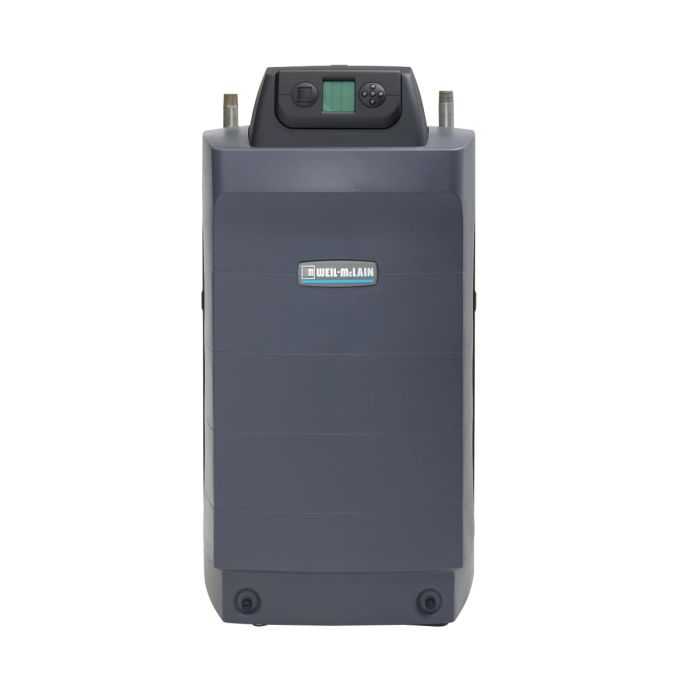

main product photo

Product details

Weil-Mclain 383-500-734 Ultra 105 Input MBtu 94% AFUE Natural Gas Condensing Water Boiler Series 4 - Direct Exhaust Or Direct Vent

FEATURES
  • Cast aluminum coated heat exchanger
  • Up to 94% DOE AFUE efficiency
  • Designed to operate in low temperature condensing applications
  • Outdoor reset and domestic hot water priority
  • Modulates with 5:1 turn-down ratio
  • High grade stainless steel burner features quiet operation
  • U-Control gives you the power for easy set-up and maintenance:
  • Multiple set-up and zone options
  • System sensing recognizes system and outdoor temperatures
  • Temperature management for up to three different set-points
  • Control multiple boilers from a single control panel
  • Standard screen messages provide service alerts and maintenance reminders

ULTRA HIGH-EFFICIENCY CONDENSING BOILER

blanco/ultra

BOILER

  • Cast aluminum block
  • 30 PSI ASME relief valve
  • Drain valve
  • Stainless Steel Burner (80, 105) with woven steel fiber mesh (155, 230, 299 & 399)
  • Direct spark ignition
  • Variable speed blower assembly
  • Venturi mixing system with air silencer
  • Negative pressure regulated gas valve
  • 50 VA transformer
  • Dual scale temp. & pressure gauge
  • Outlet water temp. sensor
  • Inlet water temp. sensor
  • Flue gas temp. sensor
  • Outdoor temp. sensor
  • System water temp. sensors
  • Fully removable jacket front
  • Adjustable boiler legs
  • On / off power switch
  • Condensate trap with drain tee assembly
  • Propane conversion orifice (all except model 80)

U-CONTROL MODULE

  • 3.5" LCD display
  • Three boiler priorities with multiple preset system configurations
  • Color-coded removable terminal blocks
  • Multiple boiler functionality
  • Alarm control functionality
  • Ignition control
  • High limit & modulating temp. control
  • Low water protection
  • Outdoor reset
  • Ability to control any combination of 3 circulators

BOILER CIRCULATORS

  • 1" Flanges (80 & 105) Taco 007e
  • 1" & 1¼" Flanges (155 & 230) Taco 0014
  • 1¼" & 1½" Flanges (299) Taco 0014
  • 1¼" & 1½" Flanges (399) Taco 0013

OPTIONAL EQUIPMENT

  • Easy-Up manifold kit
  • PVC concentric vent kit
  • Sidewall termination cap
  • Condensate neutralizer kit
  • LWCO kit
  • Wall mount kit
  • Water treatment — inhibitor & test kit

LIMITED TRANSFERABLE WARRANTY:

    RESIDENTAL
  • 12 Years Heat Exchanger
  • 2 Years Parts Without Registration or 5 Years Parts With Registration
    COMMERICAL
  • 10 Years Heat Exchanger; 1 Year Parts
Weil-McLain
See All Weil-McLain Products

Specification Sheet

Product Specifications Brochure Installation Manual Owners Manual

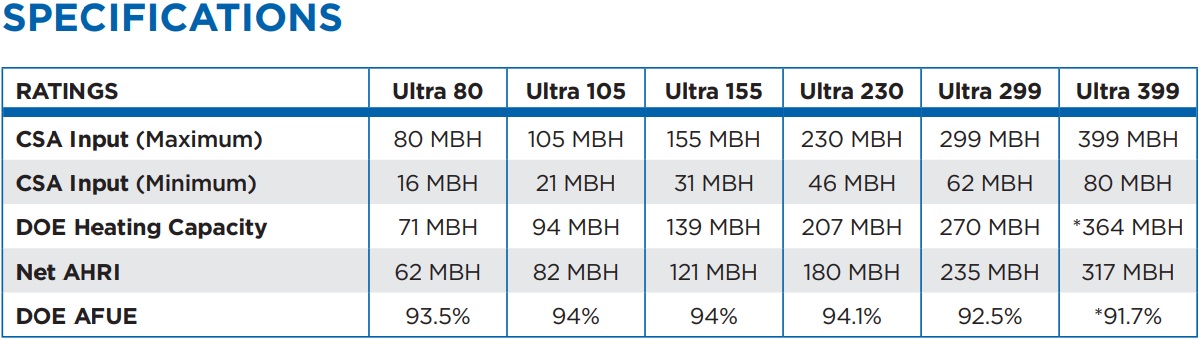

Basic Information
MPN ? Manufacturer Part Number 383-500-734
UPC / GTIN 672619208964
Manufacturer Weil-McLain
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. Ultra S4

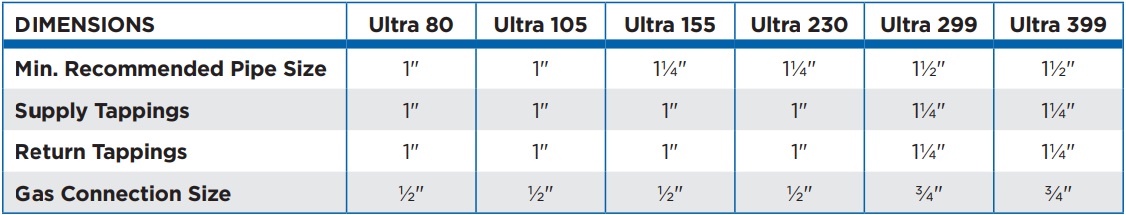

Dimensions and Measurements
Weight ? Weight 198.00
BTU Input 105,000
AFUE 94%
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 47-3/4"
Length (Inches) ? The distance of the product's longest side, measured in inches. 22-13/16"
Characteristics and Features
Material ? The material(s) used in the construction of the product. Aluminum
Boiler Type Residential
Fuel Type Natural Gas/Liquid Propane
Venting Direct Vent
Venting Type Direct Vent
