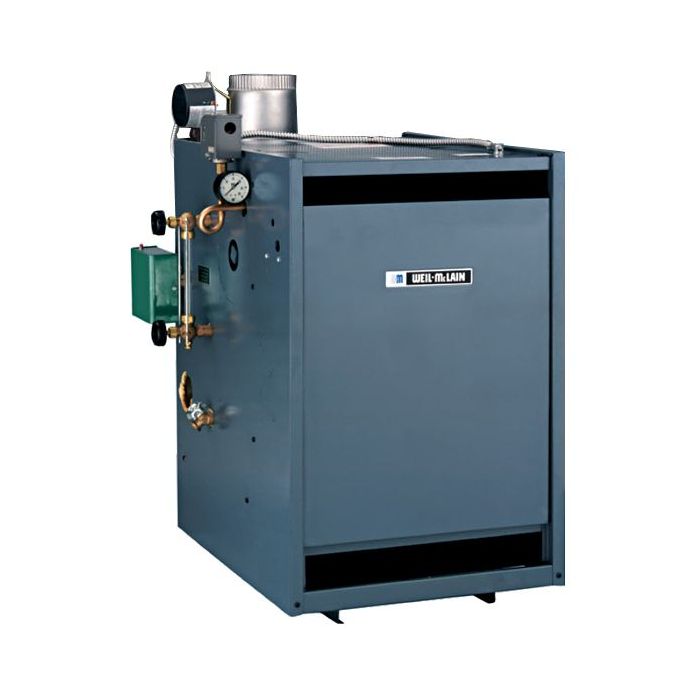

Weil-Mclain 118-655-501 EG-65 238 Input MBtu 82% AFUE Natural Gas Steam Boiler with Tankless Coil Opening(Knockdown – Assembly Required)

SKU
118655501

In Stock. Ships in 1-7 Business Days.

Retail : $8,245.00 - $1731.45 =
$6,513.55 You Save (21%)
- +
238,000

Product details

Weil-Mclain 118-655-501 EG-65 238 Input MBtu 82% AFUE Natural Gas Steam Boiler with Tankless Coil Opening(Knockdown – Assembly Required)

Knockdown Boiler Components

FEATURES
  • Comes with automatic vent damper for higher efficiencies and reduced fuel consumption
  • Easy access to controls for convenient servicing
  • Configured for Natural Gas, intermittent electronic ignition only
  • A versatile gas cast iron boiler for water or steam applications
  • Cast iron heat exchanger
  • Up to 84% AFUE

HIGH-EFFICIENCY CAST IRON BOILER EG

blanco/water boiler_1

BOILER

  • Factory-assembled section block
  • Insulated extended jacket
  • Horizontal to vertical draft hood
  • Automatic vent damper (additional for EG-75)
  • Combination gas valve for 24 volt
  • Non-linting pilot burner
  • Stainless steel burners
  • Electrical junction box
  • Spill switch
  • Rollout thermal fuse element

STEAM BOILERS ONLY:

  • 15 PSI ASME relief valve
  • High-limit pressure control
  • Low water cutoff-electrode type
  • 40 VA transformer
  • Steam pressure gauge
  • Siphon
  • Gauge cocks and glass
  • Intermittent electronic ignition system with Weil-McLain UCM universal ignition control module
blanco/water boiler

OPTIONAL EQUIPMENT:

  • Packaged steam boilers—factory assembled and tested (P-EG-30 through 65 only)
  • Left end section with openings for tankless heaters
  • Tankless heaters, heater cover plates, and controls
  • Automatic vent damper for EG-75 with electronic ignition
  • Outdoor reset kit (for water boilers without tankless only, part #381-356-586) Low cost, simple plug-in sensor-check local utility program for possible rebate.

LIMITED TRANSFERABLE WARRANTY:

  • Residential—water: 20 Years Heat Exchanger; 2 Years Parts
  • Residential—steam: 10 Years Heat Exchanger; 2 Years Parts
  • Commercial: 10 Years Heat Exchanger; 1 Year Parts
Weil-McLain
See All Weil-McLain Products

Specification Sheet

Basic Information
MPN ? Manufacturer Part Number 118-655-501
UPC / GTIN 672619220409
Manufacturer Weil-McLain
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. EG Series 6
Dimensions and Measurements
Weight ? Weight 660.00
BTU Input 238,000
AFUE 82%
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 33-3/4"
Length (Inches) ? The distance of the product's longest side, measured in inches. 27-5/8"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 29-3/4"
Characteristics and Features
Material ? The material(s) used in the construction of the product. Cast Iron
Boiler Type Residential
Fuel Type Natural Gas
Venting Chimney Vent
Venting Type Natural Draft
