Tjernlund PS1505 Fan Proving Switch Designed For Tjernlund Auto-draft Inducers

SKU
TJPS1505

In Stock. Ships in 1-7 Business Days.

Click Here for Ground Shipping Cost & Transit Time
Retail : $225.00 - $78.75 =
$146.25 You Save (35%)
- +

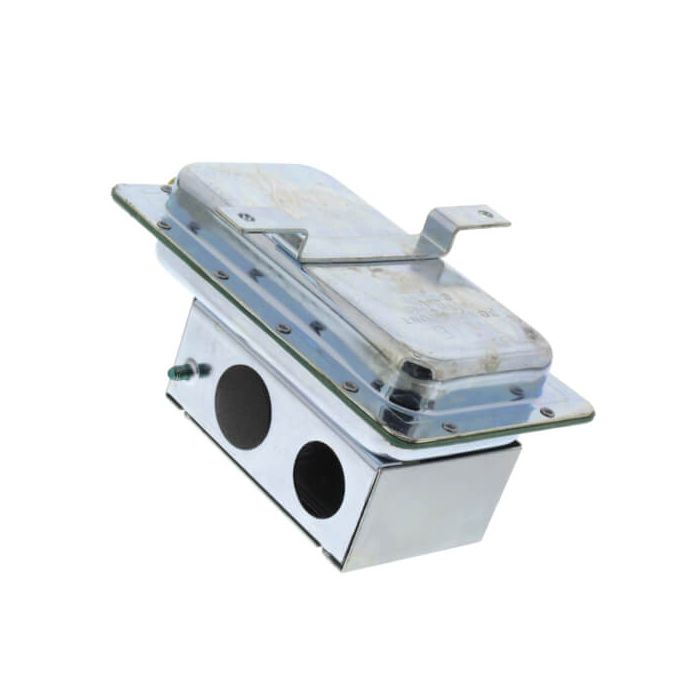

main product photo

Product details

The Tjernlund PS1505 Fan Prover has been designed to monitor the pressure within the fan housing only. A motor or wheel failure will decrease housing pressure and deactivate the pressure switch, thus preventing combustion.To satisfy national mechanical codes for oil and gas installations, Draft Inducers must be properly interlocked with burner circuits. The PS1505 Fan Proving Switch monitors pressure within the Inducer housing to verify Inducer operation. Used in conjunction with the UC1 Universal Control, it assures compliance with codes and simplifies electrical interlock with all 24/115 VAC burner circuits. The PS1505 is not compatible with millivolt gas valves.

FEATURES
  • Volatge: 125 VA @ 24 VAC 300 VA Up to 277 VAC
    • .
    Tjernlund
    See All Tjernlund Products

    Specification Sheet

    Product Specifications Installation Manual
    Basic Information
    MPN ? Manufacturer Part Number PS1505
    UPC / GTIN 080956892003
    Manufacturer Tjernlund
    Dimensions and Measurements
    Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 3.5"
    Length (Inches) ? The distance of the product's longest side, measured in inches. 6"
    Width (Inches) ? The horizontal measurement from left to right, measured in inches. 4"
    Weight ? Weight 2.00
    Characteristics and Features
    Material ? The material(s) used in the construction of the product. Aluminized Steel
    Finish ? The finish of the product provided by the manufacturer Zinc plated steel
