Taco 0026E-F2 ECM Cast Iron High-Efficiency Wet Rotator Circulator Pump, Rotated Flange

SKU
TAC0026EF2

In Stock. Ships in 1-7 Business Days.

Click Here for Ground Shipping Cost & Transit Time
Retail : $1,006.92 - $305.24 =
$701.68 You Save (30%)

  • Connection Type: Flanged x Flanged

  • Material: Cast Iron

  • Maximum Flow Rate: 44 GPM

  • Max Temperature: 230°F

  • Working Pressure: 150 PSI

- +

  • Connection Type: Flanged x Flanged

  • Material: Cast Iron

  • Maximum Flow Rate: 44 GPM

  • Max Temperature: 230°F

  • Working Pressure: 150 PSI

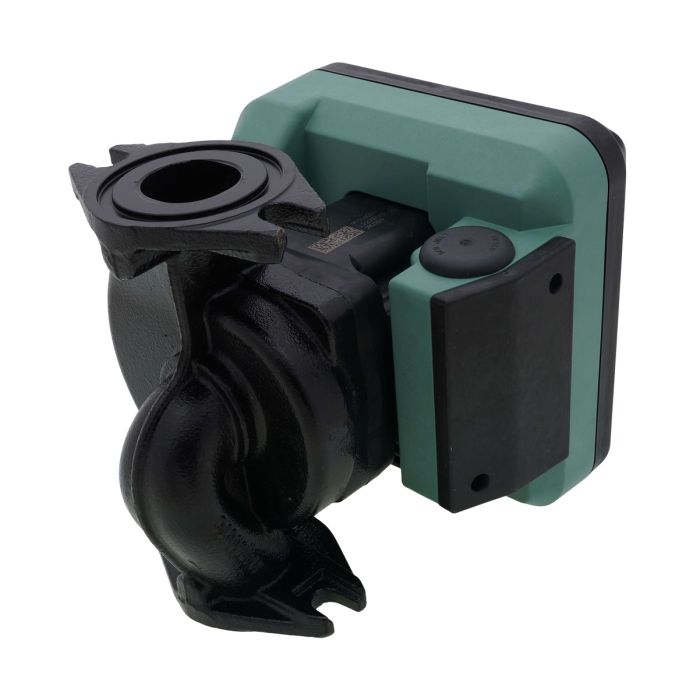

main product photo

Product details

Taco 0026E-F2 ECM Cast Iron High-Efficiency Wet Rotator Circulator Pump, Rotated Flange

The 0026e ™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm, it is available in either Cast Iron or NSF certified Stainless Steel.

Features

  • Replaces all single speed and 3-speed circulators in its class

  • Rotatable control cover to simplify installation

  • BIO Barrier protects the pump from system contaminants

  • SureStart automatic unblocking and air purging mode

  • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation

  • Nut-grabber feature on flanges for easier fit-up

  • Dual electrical knockouts and removable quick-connect terminal strip for easy wiring

  • Double insulated

  • Whisper quiet operation

Applications

  • Closed Loop Hydronic Heating

  • Hydronic Systems with Zone Valves

  • Zoning with Circulators

  • Hydronic Heating & Cooling TRV Systems

  • DHW recirculation (Stainless Steel)

  • Constant Flow Applications

Taco
See All Taco Products

Specification Sheet

Brochure Installation Manual Submittal Sheet
Basic Information
MPN ? Manufacturer Part Number 0026E-F2
UPC / GTIN 195445293435
Manufacturer Taco
Dimensions and Measurements
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 7.05"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 8.05"
Dimensions ? Dimensions 6-1/2"
Weight ? Weight 0.99
Voltage 230V
Max Flow Rate ? The volume of water moved by the product per minute, measured in gallons. 44 GPM
Phase 1
Characteristics and Features
Material ? The material(s) used in the construction of the product. Cast Iron
Valve PSI 150 PSI
Warranty and Product Information
Product Warranty 1Year Warranty
