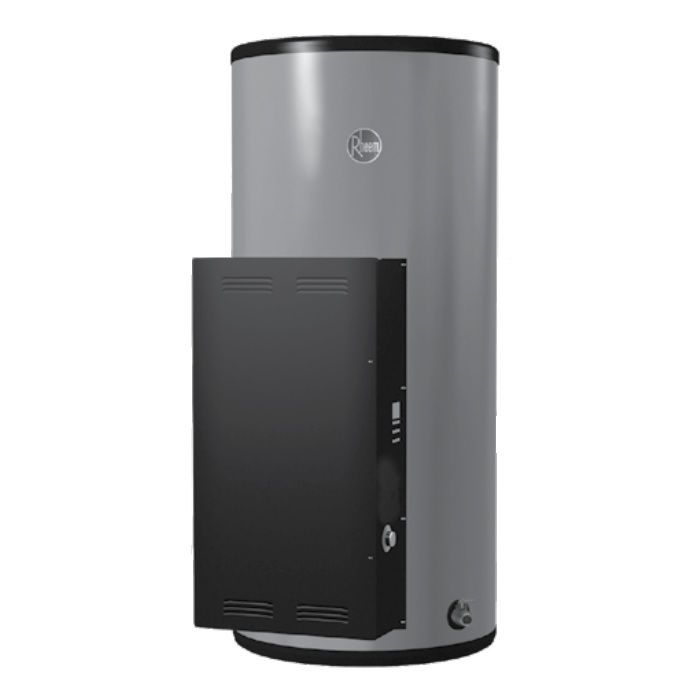

Rheem E50A-54-G Heavy Duty 50 Gallon Electric Commercial Water Heater

PowerPack ASME series commercial electric water heaters deliver a maximum of 190° F water and are designed for general use or point-of-use

Features & Benefits
• Delivers 90-190° F water
• Installs close to fixtures, eliminating the wait for hot water
• Long-life ASME tank design: Proprietary steel formulation with high temperature porcelain enamel maximizes corrosion resistance
• Lifeguard™ heating elements: Resist corrosion and burnout; separate screw-in type elements feature a stainless steel outer sheath of Incoloy® 840, which surrounds the Nichrome wire filament
• Immersion thermostat
• Water Connections: Hot outlet and cold inlet are 3/4"" NPT plastic lined nipples which prevent excessive turbulence of heated water and results in optimum tank draw
Efficiency
• 98 Percent maximum recovery efficiency
• Minimal heat loss: majority of the tank surface area is insulated with 2-1/2"" rigid polyurethane foam insulation
System Sentinel

Exclusive diagnostic system with glowing LEDs that verify heating element operation. LEDs pin point the exact location of functioning or non-functioning heating elements

Capacity & Dimensions
• 13 Gallons: 28-1/2"" tall
• 19.9 Gallons: 36-1/2"" tall
• 30 Gallons: 49-1/4"" tall
• 40 Gallons: 53-3/4"" tall
Plus…
• Integral fusing on each element
• Two magnesium anode rods for long life and corrosion resistance
• Full-flow, full-port, brass drain valve
• Temperature and pressure relief valve, factory installed
• Electrical Connections: Pre-wired, accessible control box with multiple knock-outs on side in size selections to match the National Electric Code. Sizes range from 1/2"" to 2"". A grounding screw is provided for attaching an equipment grounding conductor
• Single Panel Control Box with Hinged Door: Provides immediate access to all electrical components and elements
• Terminal Block: All models are equipped with U.L. listed terminal blocks for simplicity of installation. The terminal block will accept either copper or aluminum field connect wire
• 120 Volt Control Circuit: All units are furnished with a fused 120 volt control circuit. This circuit is created by an internal multi-tap transformer of unique design that has four (4) taps for the primary voltages, 208, 240, 277 and 480

• Fuse Type: The “G” in the model number represents Class G fuses.
• UL Sanitation Compliance: All models are UL Sanitation (NSF5) compliant when equipped with the optional ring seal kits. E12A, E20A, E30A-(AS39827), E40A-(AS39828) Solid State Low Water Cut-off – units may be ordered with probe type cut-off for field installations (AP8408).

• System Sentinel: All models employ a diagnostic panel utilizing light emitting diodes (L.E.D.), corresponding to the number and location of each heating element. L.E.D.’s are energized when the electric elements are operating. An unlit L.E.D. pinpoints the exact location of a non-functioning element, making element operation diagnosis simple and positive
