Peerless 1605009 ECT-E-05-S 280 Input MBtu 85% AFUE - Residential Oil-Fired Steam Boiler Natural Draft - (Knockdown - Burner Sold Separately)

SKU
PEE1605009

In Stock. Ships in 1-7 Business Days.

Click Here for Shipping Cost by Destination
Retail : $6,585.00 - $1843.8 =
$4,741.20 You Save (28%)
280,000
Peerless 1604022 ECT-E-04-S 210 Input MBtu - 85% AFUE - Residential Oil-Fired Steam Boiler Natural Draft - (Knockdown - Burner Sold Separately)
Selected
Peerless 1605009 ECT-E-05-S 280 Input MBtu 85% AFUE - Residential Oil-Fired Steam Boiler Natural Draft - (Knockdown - Burner Sold Separately)
Peerless 1606102 ECT-06-S ECT Series Residential Oil-Fired Steam Boiler, 385,000 BTU, 85.2% AFUE, Natural Draft (Knockdown - Burner Sold Separately)
selected

selected

selected

selected

selected

selected

selected

selected

- +
280,000
Peerless 1604022 ECT-E-04-S 210 Input MBtu - 85% AFUE - Residential Oil-Fired Steam Boiler Natural Draft - (Knockdown - Burner Sold Separately)
Selected
Peerless 1605009 ECT-E-05-S 280 Input MBtu 85% AFUE - Residential Oil-Fired Steam Boiler Natural Draft - (Knockdown - Burner Sold Separately)
Peerless 1606102 ECT-06-S ECT Series Residential Oil-Fired Steam Boiler, 385,000 BTU, 85.2% AFUE, Natural Draft (Knockdown - Burner Sold Separately)

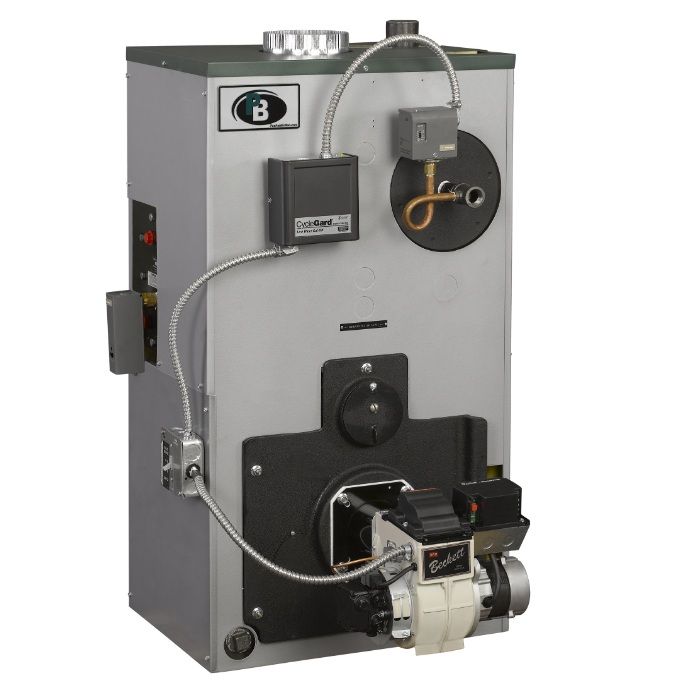

main product photo

Product details

Peerless 1605009 ECT-E-05-S 280 Input MBtu 85% AFUE - Residential Oil-Fired Steam Boiler Natural Draft - (Knockdown - Burner Sold Separately)

The Series EC is a residential, oil-fired, cast iron boiler for steam or hot water systems. The large water content of the boiler makes it ideal for steam and large volume hot water applications. The EC boiler has an AFUE of up to 87.6% – ENERGY STAR certified – and features high efficiency, flame retention burners in choice of Beckett, Carlin or Riello. Optional tankless coils can be added for all your domestic hot water needs. A full, non-prorated lifetime warranty is included for all water boilers and a limited 10-year warranty covers the heat exchanger of steam boilers.

Product Features

  • Up to 87.6% AFUE - ENERGY STAR Certified!

  • All Models - DOE 2021 Compliant!

  • Natural Draft (Chimney) Venting

  • High Efficiency, flame Retention BurnersChoice
      of Beckett, Carlin or Riello

  • Cast Iron SectionsFactory Tested and Assembled
      with Steel Push Nipples

  • Large Water Content, Wet Base Section Design
      Ideal for Steam and Large Volume Hot Water
      Applications

  • Insulated, Deluxe Powder Coated Steel Jacket
      Reduces Boiler Heat Loss

  • Full Plate Swing-Out Door For Quick and Easy
      Cleaning

  • Optional Tankless Coils for Domestic Hot
      Water

Standard Equipment

  • Probe Type LWCO

  • Pressure Control

  • Skim Tapping

  • Pressure Gauge

  • Drain Valve

  • Service Switch

  • Barometric Draft Damper

Boiler Components

SKU Description
PEE90658 PEE 90658 BLOCK ECT-05 30# KD +
PEE15505 PEE 15505 JKT EC(T)-E-05 30# CTN #12B
PEE99538 PEE 99538 FLUE COLLECT EC-05 CTN #14
PEE94011 PEE 94011 STEAM TRIM EC/ECT CTN 17

Peerless Boiler Series EC and EC(T)

blanco/peerless_boilers_EC_water_1

Series EC Boiler Features

  • Up to 87.6% AFUE ENERGY STAR Certified certain firing rates
  • All Models - DOE 2021 Compliant
  • Natural Draft (Chimney) Venting
  • High Efficiency Flame Retention Burners
    • Choice of Beckett, Carlin or Riello 6
  • Sizes Available (3-6 sections)
    • Packaged or Knockdown Boilers
  • Cast Iron Sections
    • Factory Tested and Assembled with Steel Push Nipples
  • Large Water Content, Wet Base Section Design
    • Ideal for Steam and Large Volume Hot Water Applications
  • Insulated, Deluxe Powder Coated Steel Jacket
    • Reduces Boiler Heat Loss 2
  • Full Plate Swing-Out Door
    • For Quick and Easy Cleaning 3
  • Optional Tankless Coils for Domestic Hot Water 1
blanco/peerless_boilers_EC_water

Standard Equipment

    STEAM
    • Probe Type LWCO
    • Pressure Control
    • Skim Tapping
    • Pressure Gauge
    • Drain Valve
    • Service Switch
    • Barometric Draft Damper
Peerless Boilers
See All Peerless Boilers Products

Specification Sheet

Product Specifications Installation Manual
Basic Information
MPN ? Manufacturer Part Number 1605009
Manufacturer Peerless Boilers
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. EC(T)
Dimensions and Measurements
Weight ? Weight 840.00
BTU Input 280,000
AFUE 86%
Characteristics and Features
Material ? The material(s) used in the construction of the product. Cast Iron
Boiler Type Residential
Fuel Type Oil-Fired
Venting Natural Draft
Venting Type Natural Draft
