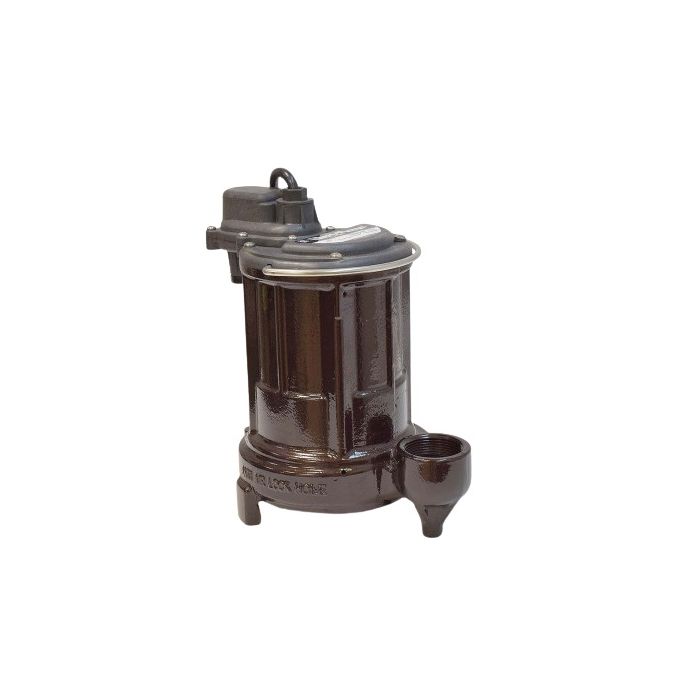

Liberty Pumps 250-2 250-Series 1/3 HP Cast Iron Submersible Sump/Effluent Pump in Black/Bronze

SKU
LIB2502

Out of Stock
Retail : $291.00 - $72.75 =
$218.25 You Save (25%)

Product details

Liberty Pumps 250-2 is a 1/3HP Manual Submersible Sump/Effluent Pump with 25ft quick-disconnect power cord. This Liberty Pump features a unique one-piece cast iron housing and thermally protected & permanently lubricated motor. Efficient motor design of this Energy Saving Liberty Pump reduces electrical usage by up to 40%.

Liberty Pumps 250-2 has 1-1/2" NPT discharge, 1/2" solids-handling and 18' shut-off head. It is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Regardless of the control type, be sure that when the pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged.

For added protection, consider the addition of a back-up pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.

CAUTION: Do not let the pump run dry.

FEATURES
    • Rugged 1/3 HP motor, oil filled with thermal overload protection
    • 1/2" solids handling
    • 1-1/2" discharge
    • Hermetically sealed motor and switch cavities, and permanently lubricated bearings
    • Liberty's UNI-BODY casting - a solid, onepiece housing that eliminates the lower motor seal ring found on other pumps
    • Epoxy powder coat finish
    • Vortex style impeller for superior solids-handling. Made of high temperature engineering polymer
    • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor
    • Fasteners - all non-corrosive stainless steel
    • 416 stainless steel rotor shaft
  • Liberty Pumps
    See All Liberty Pumps Products

    Specification Sheet

    Basic Information
    MPN ? Manufacturer Part Number 250-2
    UPC / GTIN 671812100303
    Manufacturer Liberty Pumps
    Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. 250
    Dimensions and Measurements
    Horsepower 1/3 HP
    Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 10.5"
    Length (Inches) ? The distance of the product's longest side, measured in inches. 9.6"
    Width (Inches) ? The horizontal measurement from left to right, measured in inches. 9.6"
    Depth (Inches) ? Depth 6-1/2"
    Weight ? Weight 23.00
    Voltage 115V
    Characteristics and Features
    Material ? The material(s) used in the construction of the product. Cast Iron
    Finish ? The finish of the product provided by the manufacturer Black/Bronze
