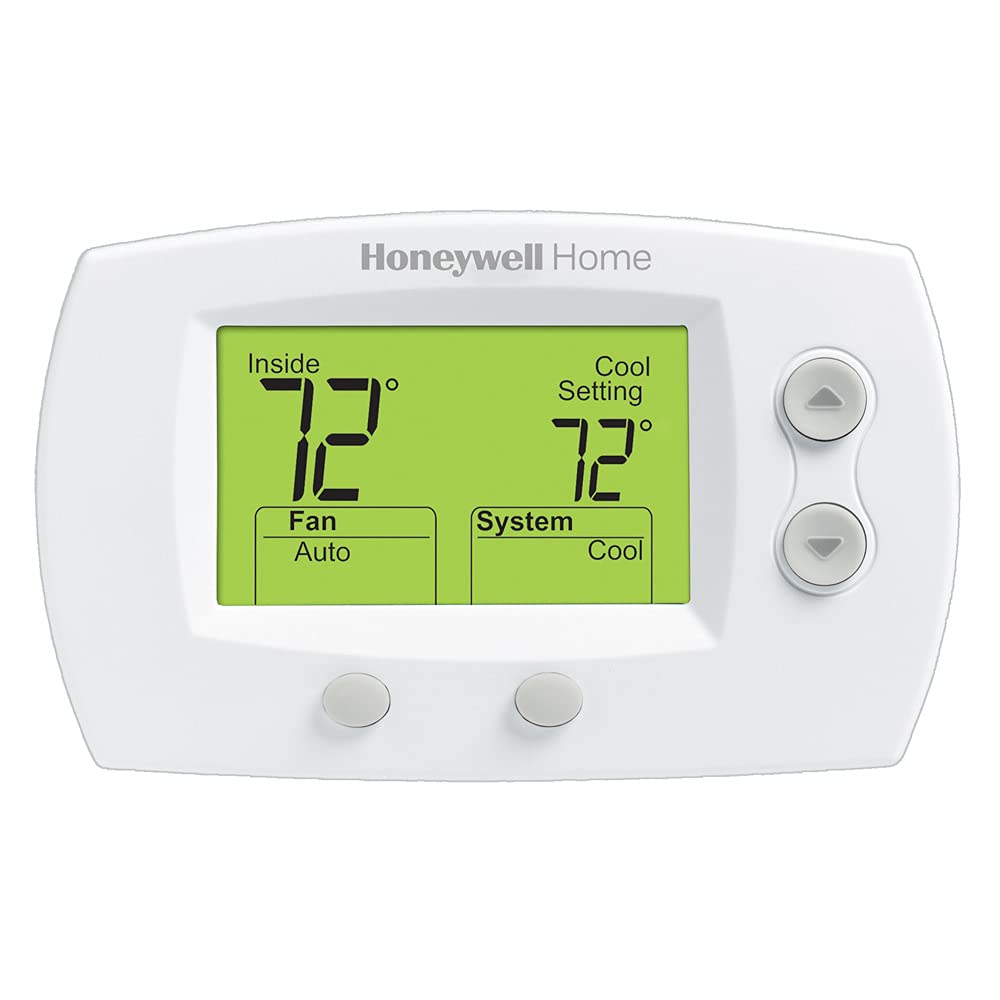

Honeywell TH5220D1003 FocusPro Non Programmable 2H/2C Thermostat

Description

The FocusPRO non-programmable digital thermostat provides electronic control of 24 Vac conventional and heat pump systems or 750 mV heating systems.
Features

• Non-programmable digital thermostat.
• Display size options - available in large screen or standard.
• Precise comfort control (+/- 1ªF) - maintains consistent comfort to the highest level of accuracy.
• Easy change battery door,flip out door allows for easy battery replacement without removing or disassembling the thermostat.
• 5-year limited warranty.

Product Specifications

• Application: Gas, Oil or Electric; Heat Pump; Millivolt
• Mounting: Horizontal
• Programmability: Non-Programmable
• Changeover: Automatic/Manual Selectable
• Color: Premier White
• User Interface: Soft Key
• Stages: Up to 2 Heat / 2 Cool
• Power Method: Battery or Hardwired
• Terminal Designations: Rc, R, W (O/B), W2 (AUX), Y, Y2 (E), G, L, C
• Switch Positions (Fan): AUTO-ON
• Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
• Switch Type: Relay
• Accuracy (F): +/- 1ªF
• Accuracy (C): +/- 0.5ªC
• Dimensions (in.): 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep
• Dimensions (mm): 91 mm High X 147 mm Wide X 38 mm Deep
• Setting Temperature Range (F): Heat: 40ªF to 90ªF; Cool: 50ªF to 99ªF
• Setting Temperature Range (C): Heat: 4.5ªC to 32ªC; Cool: 10ªC to 37ªC
• Electrical Ratings: 20 to 30 Vac or 750 mV
• Frequency: 60 Hz;50 Hz
• Currents (Cooling): Y = 0.02 A to 1.0 A running;Y2 = 0.02 A to 1.0 A running
• Currents (Heating): W = 0.02 A to 1.0 A running;W2 (AUX) = 0.02 A to 0.5 A running;E = 0.02 A to 1.0 A running
• Currents (Fan): 0.02 A to 0.5 A running
• Sensor Element: Thermistor
• Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
• Comments: Standard Display
