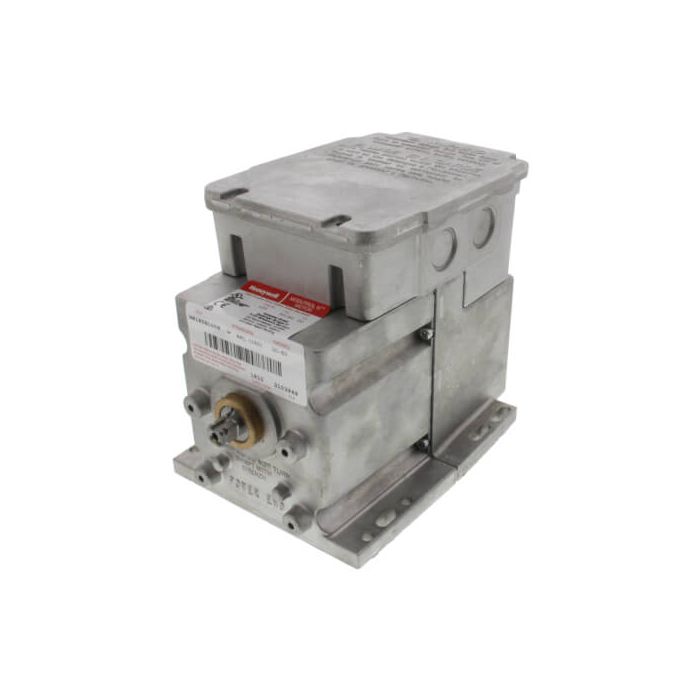

Honeywell M4185B1009 Modutrol IV Motor with Internal Auxiliary Switch (120V)

Fixed torque throughout the entire voltage range.

Integral spring return returns motor to normal position when power is interrupted.

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.

Motor and circuitry operate from 24 Vac.

Quick-connect terminals are standard--screw terminal adapter is available.

Adapter bracket for matching shaft height of older motors is available.

Motors have field adjustable stroke (90 to 160 degrees).

Motors are designed for either normally open or normally closed valves and dampers.

Integral auxiliary switches are available factory mounted, or can be field added.

Motors can operate valve linkages from the power end or auxiliary end shafts for normally closed or normally open valve applications.

All models have dual shafts (slotted and tapped on both ends).
