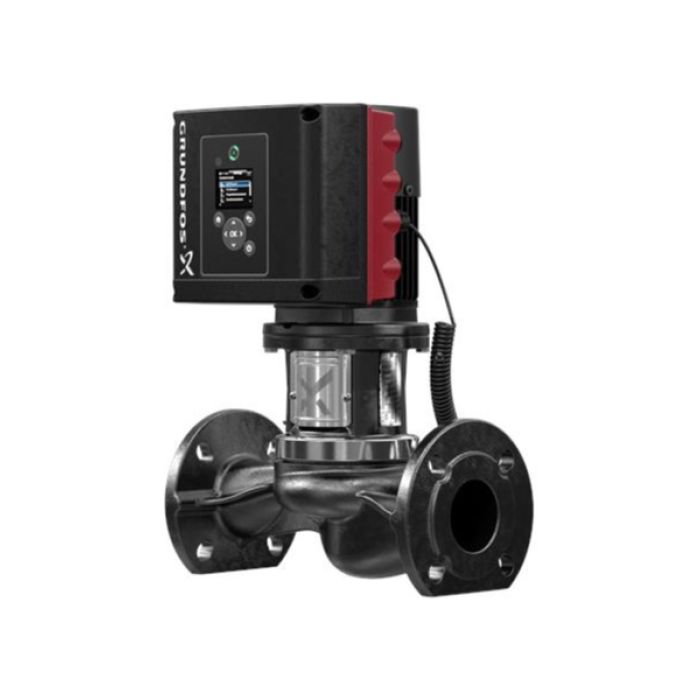

Grundfos 98819756 TPE3 80-120 S-A-G-A-BQQE-GAB, 200-240 V, 184.36 GPM, 1.47 HP Cast Iron Circulator Pump

Grundfos 98819756 TPE3 80-120 S-A-G-A-BQQE-GAB, 200-240 V, 184.36 GPM, 1.47 HP Cast Iron Circulator Pump

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The shaft seal is according to EN 12756. The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The pump is fitted with a combined temperature- and differential pressure sensor.
