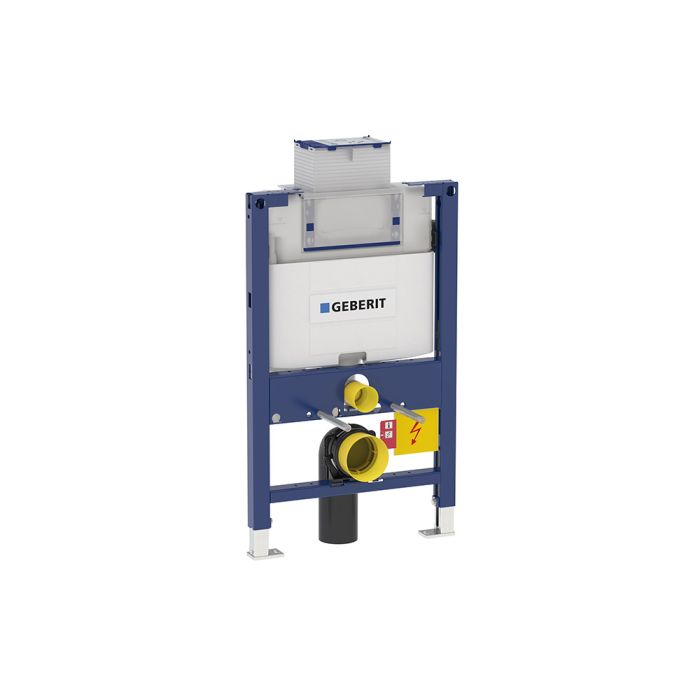

Geberit 111.018.00.1 Duofix Carrier With Omega Concealed Tank For 2x6 Pre-wall Construction

This carrier is only compatible with TOTO's CT437FG + CT437FGT20.

• Height 32 in (82 cm)
• For installation of Omega concealed flush tanks for wall-hung washdown toilet
• For installation in wood or steel stud walls that provide support equal to 5.5" depth
• For dual flush
• For room wall or pre-wall construction covered with panels (gypsum or wood)
• For installation in front of a solid or drywall
• For installation in room-height partition wall or pre-wall
• For a floor construction of 0 to 4 in (0 to 10 cm)
• For 2-hole, wall-hung, washdown toilet with fastening distance 7.1 in (18 cm) or 9.1 in (23 cm)
• For toilet with dual flush, low-consumption flushing volume of 1.28 / 0.8 GPF (4.8 / 3 LPF)
• For toilet seated heights of 15 Inch to 19 Inch
• Supports up to 880 lbs (400 kg)
• Water supply connection at left back or at the top
• Self-locking feet for tool-free alignment of the frame
• Feet galvanized, infinitely adjustable 0 to 4 in (0 to10 cm)
• Concealed cistern fully insulated against condensation
• Fill valve flow rate at 7 psi (0.5 bar): 1.1 gpm (0.07 l/s)
• Fill valve flow rate at 43 psi (3 bar): 3.0 gpm (0.19 l/s)
• Flush volume: 1.28 / 0.8 GPF (4.8 / 3 LPF)
• Fill valve operating pressure range: 1 to 145 psi (0.1 to 10 bar)
• Fill valve max. fluid temp: 77 º F (25 º C)
• Tank and frame, water supply, and drainage elbow
• 2 threaded rods M12 for ceramics fastening
• Type 380 fill valve
• Fastening material
• Actuator REQUIRED for installation-Sold Separately
• CARRIER IS FOR TWO HOLE WASH DOWN STYLE WALL HUNG TOILET-DOES NOT INCLUDE A TOILET BOWL.
