Caleffi 6686F5S1A 668S1 Series TwistFlow Radiant Manifold Assembly 6 Loop 1"

SKU
CAL6686F5S1A

In Stock. Ships in 1-7 Business Days.

Click Here for Ground Shipping Cost & Transit Time
Retail : $1,025.00 - $307.5 =
$717.50 You Save (30%)
- +

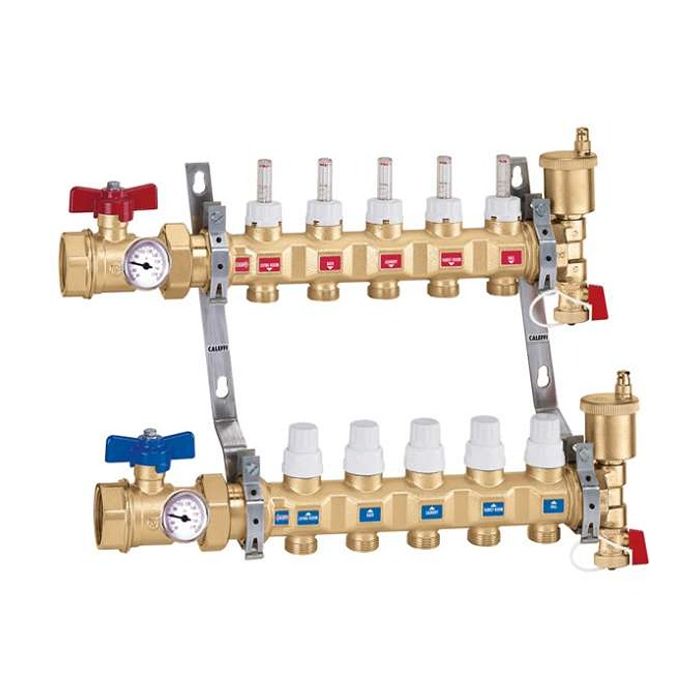

main product photo

Product details

Pre assembled radiant manifold consisting of return distribution manifold complete with built in shut off valves suitable for thermo electric actuator and supply distribution manifold complete with built in sight flow gauges and balancing valves with 2" gauges (30° - 210°F scale).

FEATURES
  • 1" or 1¼" NPT inlet ball valves
  • Max working pressure: 150 psi
  • Max working temp: 180°F
  • Max peak temp: 200°F
  • Loop Cv: 1.23 combined supply and return ports
  • Flow meter scale: ¼ - 2 gpm
  • Outlet center distance: 2"
Caleffi
See All Caleffi Products

Specification Sheet

Product Specifications Brochure Installation Manual
Basic Information
MPN ? Manufacturer Part Number 6686F5S1A
UPC / GTIN 8016615244021
Manufacturer Caleffi
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. 668S1 Series
Dimensions and Measurements
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 5"
Length (Inches) ? The distance of the product's longest side, measured in inches. 27.5"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 17.75"
Weight ? Weight 19.60
Characteristics and Features
Material ? The material(s) used in the construction of the product. Brass
