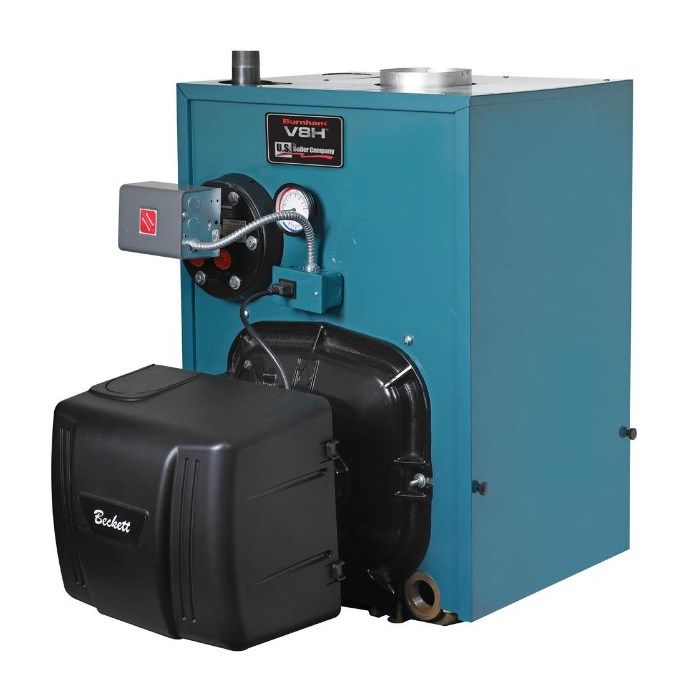

Burnham PV8H3WET-TBWF, V8H, 120 Input MBtu, 86% AFUE, Water Trim front Heating Opening Heater Control Water Boiler, Chimney Vent, Limited Lifetime Warranty, Taco 007e Pump with Beckett Burner (Packaged)

Oil Fired, Chimney Vented, Cast Iron Steam Boiler

• 86% AFUE ENERGY STAR-certified 87% AFUE available with upgrade kit (see back for details)
• Cast iron sectional design
• Seven sizes available, 1.00-2.60 GPH
• Optional tankless water heater
• Multiple oil burner options for water boilers (Beckett, Carlin), includes burner cover for quiet operation
• Durable push-nipple connections between boiler sections – will not deteriorate when exposed to petroleum-based antifreeze
• Easy to clean and service–side and top cleanouts provide complete access to flueways
• Full swing-away burner door
• Lifetime limited warranty

Standard Equipment

• Cast iron section assembly: Wet base construction, quick release top outlet canopy, removable right side flue plates
• Intelligent Oil Boiler Control System (water only)
• Cast iron swing door
• Flange mounted retention oil burner
• Insulated deluxe jacket with lift-off side panel
• Boiler drain valve
• Safety relief valve
• Pressure temperature gauge
• High limit & relay
• Draft regulator
• Gauge glass set (steam only)
• Steam gauge (steam only)
• Probe-type LWCO (steam only)
• 8 and 9 section models always shipped as individually crated knock-downs

The versatile V8 does it all!

Hot water or steam heat, the Burnham V8H can handle it. This efficient and highly adaptable boiler offers a variety of sizes and configurations to fit most home heating needs, and is available with an optional tankless hot water heater*. In addition, an optional high efficiency kit is also available, providing ENERGY STAR certified performance!

American-made quality and efficiency

The cast iron heat exchanger in the V8H is precision cast in Zanesville Ohio. Comprised of 100% recycled material and designed for years of reliable home comfort, It features a surface area which is up to 40% larger than many competitive models. This means that the boiler is able to heat up quicker, enabling a faster transfer of heat and greater efficiency. Every heat exchanger is water and pressure tested prior to assembly. The V8H is assembled in Lancaster, PA. Before it ships, every component used in the boiler is subject to strict standards of quality control and performance verification, which are constantly monitored during the manufacturing process. The end result is a boiler which will provide years of trouble free, efficient, and reliable service.

New boiler controls (water versions)

The new Intelligent Oil Boiler Control brings high end control capability to the V8H. By continuously monitoring all aspects of boiler operation, this control system is able to deliver increased efficiency and impressive energy savings.
