Buderus 7-747-019-702 G115WS Series 85 Input MBtu, 87% AFUE, Cast Iron Residential Oil Boiler - Chimney Vent (Burner Sold Separately)

SKU
G115WS3

In Stock. Ships in 1-7 Business Days.

Click Here for Shipping Cost by Destination
Retail : $5,307.00 - $2861 =
$2,446.00 You Save (54%)
85,000
Selected
Buderus 7-747-019-702 G115WS Series 85 Input MBtu, 87% AFUE, Cast Iron Residential Oil Boiler - Chimney Vent (Burner Sold Separately)
Buderus 7-747-019-703 G115WS Series 95 Input MBtu, 87% AFUE, Cast Iron Residential Oil Boiler - Chimney Vent (Burner Sold Separately)
Buderus 7-747-019-704 G115WS Series 119 Input MBtu, 87% AFUE, Cast Iron Residential Oil Boiler - Chimney Vent (Burner Sold Separately)
- +

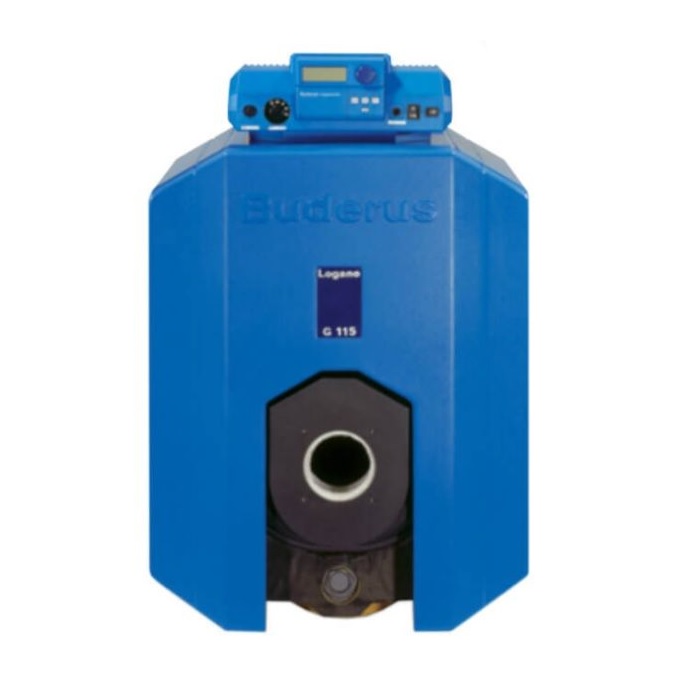

main product photo

Product details

Buderus 7-747-019-702 G115WS Series 85 Input MBtu, 87% AFUE, Cast Iron Residential Oil Boiler - Chimney Vent (Burner Sold Separately)

The Buderus G115WS boiler is based on the highly successful G115, the world’s best selling boiler. The G115WS has been redesigned and reengineered to extract and deliver more heat from every fuel dollar, and now has higher outputs at less cost per BTU. Acknowledged as the leader in high-efficiency, low emission hydronic heating, Buderus offers innovative design and quality manufacturing.

Product Features

  • Designed to operate at any return water
      temperature

  • Full swing burner door for easy & quick, thorough
      cleaning

  • No refractory parts for reduced maintenance

  • Boiler fully serviced and cleaned from the front

  • Cast iron breaching for long life

  • Thermostream design increases efficiency &
      reliability

  • High efficiency through full three-pass boiler
      design

  • Improved Efficiency - 87% AFUE

  • Engineered to extract and deliver more heat from
      every fuel dollar

  • Special compounds provide a gas-tight seal for
      safe and efficient operation

  • Optimized combustion with positive pressure-fired
      boilers and tailored chamber geometry

  • Minimal stack losses with the modified three-pass
      flue design’s large heat transfer areas

  • Low standby losses with a full 3" jacket of thermal
      insulation around the entire block even
      underneath the boiler

Bosch
See All Bosch Products

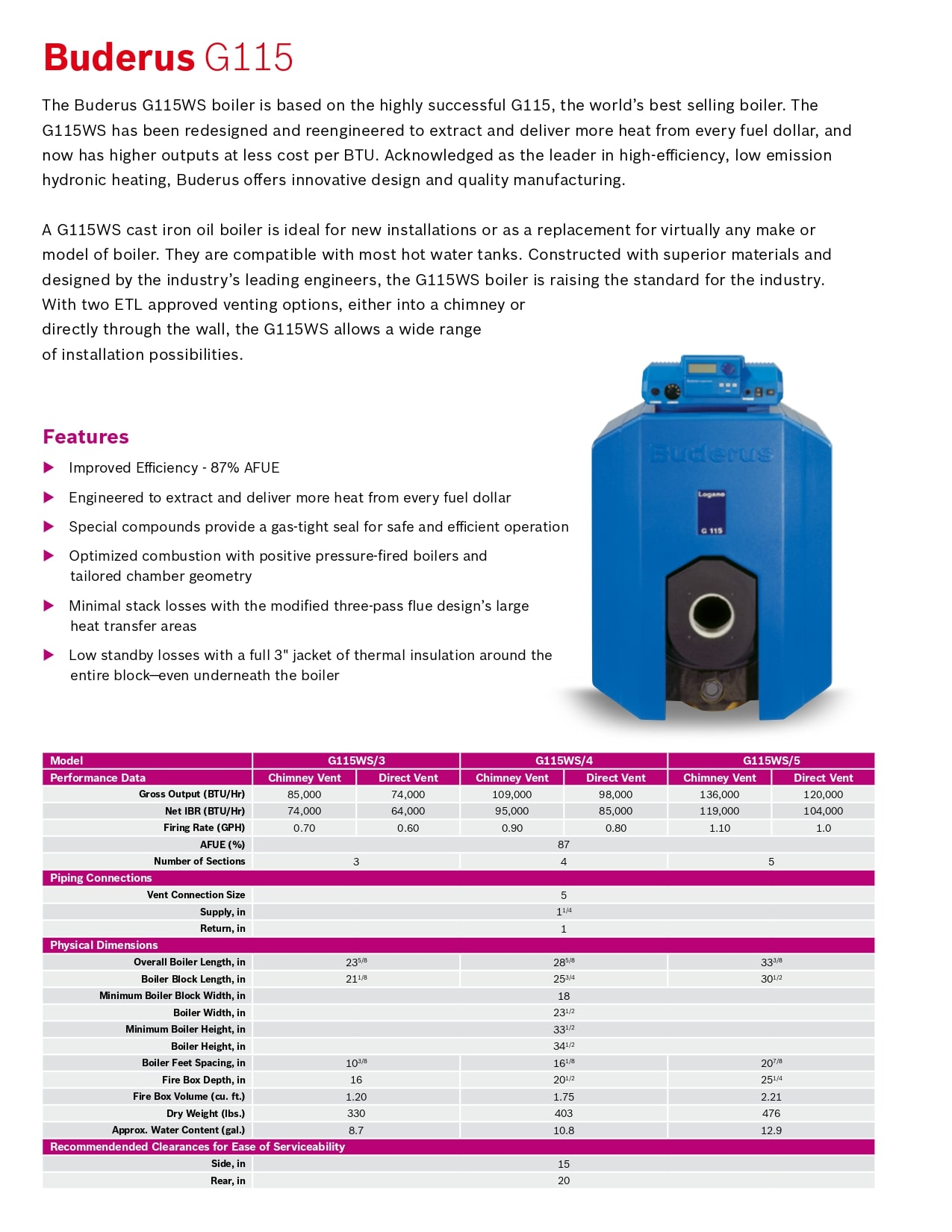

Specification Sheet

Product Specifications Brochure
Basic Information
MPN ? Manufacturer Part Number 7747019702
Manufacturer Bosch
Dimensions and Measurements
Weight ? Weight 0.99
BTU Input 85,000
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 34-1/2"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 23-1/2"
Depth (Inches) ? Depth 23-5/8"
Characteristics and Features
Fuel Type Oil-Fired
