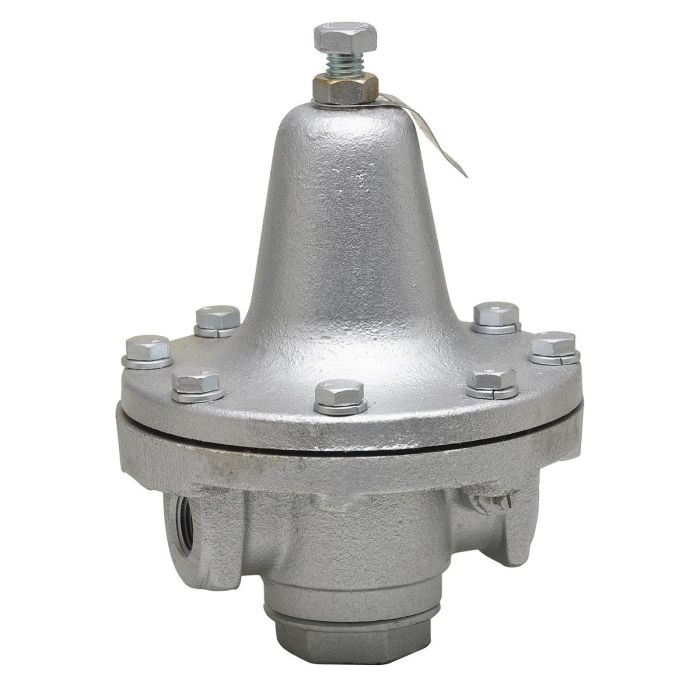

Watts 0830910, 152A-10-50, 0.5" Iron Process Steam Pressure Regulator, Reduced Pressure Range 10 To 50 psi

WATTS Pressure Regulator, Series: 152A, 0.5" Nominal Size, FNPT, 200 psi, 204 deg F, Media: Steam, 7 in Top to Inlet Center, Iron Body, Stainless Steel Trim, Stainless Steel Seat Series 152A Process Steam Pressure Regulators are used in commercial, industrial, and institutional applications to regulate steam pressure in autoclaves, steam tables/irons, vulcanizers and large capacity process services. It is highly sensitive to reduced pressure changes. It consists of an iron body construction with NPT threaded female inlet and outlet connections, stainless steel strainer, laminated metal diaphragm, and sensitivity adjustment feature for critical flow. Series 152A offers full volume with minimum pressure drop and in-line serviceability. It is ideal for use on sterilizers, process lines, testing fixtures, and oil lines. Tight seating Model 152A-T available for dead end and liquid services. Maximum Supply Pressure: Up to 200psi (13.8 bar).

• Serviceable in line
• Standard sensitivity adjuster
• Iron body for pressures up to 200 psi
• Stainless steel strainer
• Laminated metal diaphragm
• Stainless steel seat and disc
• No 146 spring
• When utilizing a Teflon valve disc in the 152AT, the maximum operating temperatures are 300 deg F at 300 psi and 400 deg F at 200 psi
