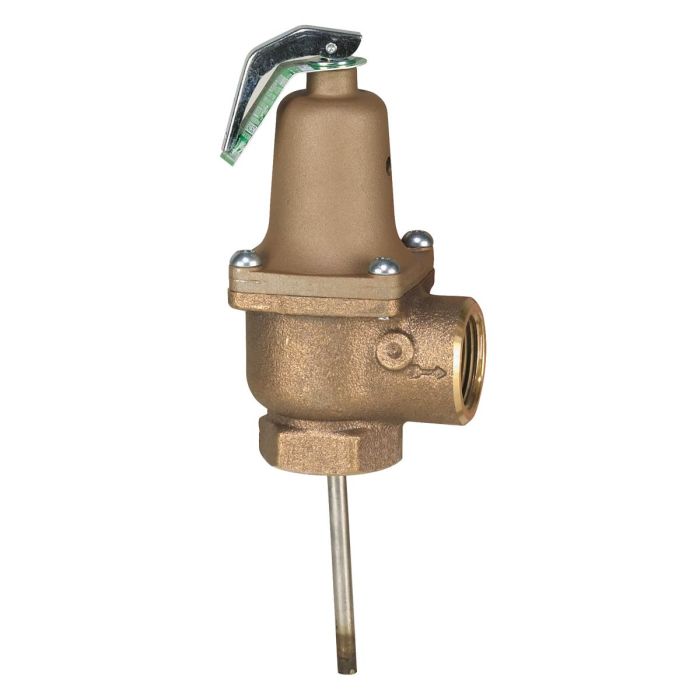

Watts 0121460, LF140X9, 150-210, 1" Lead Free Automatic Reseating Temp And Pressure Relief Valve, 150 psi, 210 degree F, 9 In Thermostat, Female Connections

SKU
WAT140X10LF

Out of Stock
Retail : $1,218.96 - $414.45 =
$804.51 You Save (34%)

Product details

Series 140S, 140X Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to domestic hot water supply tanks and hot water heaters. They feature a bronze body with NPT female inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating (3/4 in.) or stainless steel thermostat (1 in.), tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model 140S has a short thermostat for installation directly in available tank tappings. Model 140X has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series 140S, 140X valves are ASME rated and CSA listed.

FEATURES
  • Temperature Relief: 210 degree F (99 degree C)
  • Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar)
  • Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar)
Watts
See All Watts Products

Specification Sheet

Basic Information
MPN ? Manufacturer Part Number F121460
UPC / GTIN 098268566680
Manufacturer Watts
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. 140S, 140X
Dimensions and Measurements
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 2.62"
Weight ? Weight 0.99
Characteristics and Features
Material ? The material(s) used in the construction of the product. Stainless Steel;Bronze
