Beckett 7590D0001U GeniSys® 24V Gas Burner Control for CG4 Gas Burner

SKU
BEC7590D0001U

In Stock. Ships in 1-7 Business Days.

Click Here for Ground Shipping Cost & Transit Time
Retail : $209.00 - $41.8 =
$167.20 You Save (20%)
- +
main product photo

Product details

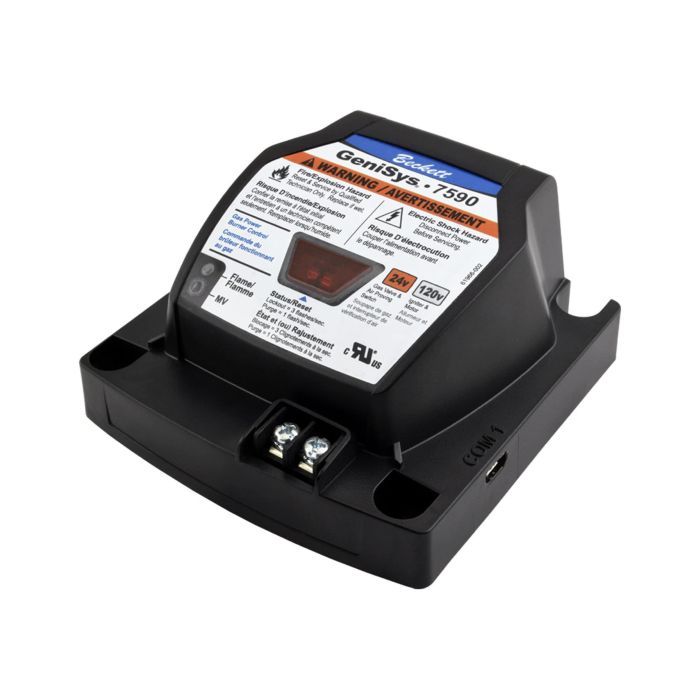

Beckett 7590D0001U GeniSys® 24V Gas Burner Control for CG4 Gas Burner

The Beckett GeniSys® 7590 Gas Power Burner Control is a safety control designed for use on gas power burners. This control is intended for use in residential and light commercial gas heating applications. Applications may include boilers, furnaces, water heaters, space heating and commercial cooking equipment.

The 7590 provides supervision of a separate 120 VAC igniter, a 120 VAC combustion blower motor, a 24 VAC gas valve and 24 VAC connections for an air proving switch (on 7590 C, D). The control uses flame rectification principles to prove the presence of the burner flame. Basic diagnostic information is provided through 3 LEDs. Additional diagnostic information and control setup will be available through the BeckettLink 7700A diagnostic tool.

Features

  • 3 LEDs provide basic diagnostic information

  • Single or multiple trials for ignition before lockout

  • Designed for easy mounting on a 4 x 4 junction

  • Selectable ignition timing 4-15 seconds

  • Selectable pre-purge timing 1-240 seconds

  • Selectable relight or recycle operation on loss of flame

  • The microprocessor is checked for proper operation before each cycle

  • Checks combustion air proving switch contacts on 7590C and D models

  • Gas valve relay check on each cycle

  • Available model (7590C) with manual reset button and non-volatile lockout

  • Communication Port links new alarm module and future products

  • For use on natural or LP gas

  • Provides reliable proof of flame using flame rectification

Beckett Burners
See All Beckett Burners Products

Specification Sheet

Product Specifications User Manual
Basic Information
MPN ? Manufacturer Part Number 7590D0001U
UPC / GTIN 045558119033
Manufacturer Beckett Burners
Dimensions and Measurements
Weight ? Weight 2.00
