AO Smith 100310865 GPVX-75L-LP Proline 75 Gallon Residential Liquid Propane Water Heater - Power Vent - 6 Year Warranty

SKU
SMIGPVX75LLP

In Stock. Ships in 1-7 Business Days.

Click Here for Shipping Cost by Destination
Retail : $4,814.00 - $1775.4 =
$3,038.60 You Save (37%)
- +

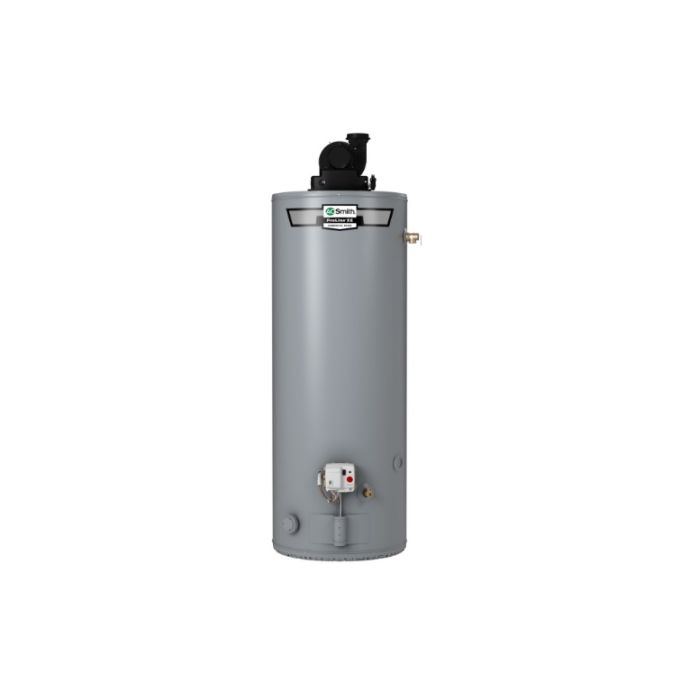

main product photo

Product details

The ProLine XE Power Vent gas water heater is engineered to maximize efficiency while offering greater flexibility in installation options. Featuring a 75-gallon (nominal) tank and a 76,000 BTU propane burner, the GPVX-75L (LP) Power Vent delivers a recovery rate of 80.4 gallons per hour. It carries a 6-year limited warranty, and meets Low NOx emission requirements.

FEATURES
  • 3-position rotatable blower outlet adds flexibility for an easy installation.Aceepts 4" PVC, CPVC, ABS or polypropylene.
  • A. O. Smith's CoreGard Anode Rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods.
  • Enhanced-Flow Brass Drain Valve have a solid brass, tamper resistant, enhanced-flow, ball type, drain valve. Uses a standard female hose fitting that allows for fast and easy draining during maintenance. Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off.
  • Top-mounted T&P relief valve available as an option.

    • AO Smith Proline® XE Water Heater

    PROLINE® XE HIGH EFFICIENCY NON-CONDENSING POWER VENT

      ENERGY STAR® Qualified
      • All models (except GPVX 75L) meet the ENERGY STAR® requirement and may also qualify for local utility and rebate programs
      • Built-in heat traps
      • Water inlet and outlet reduce the amount of heat lost through piping
      Versatile Power Vent Design
      • All models feature an exclusive 3-position rotatable blower outlet which adds flexibility
      • Combined horizontal and vertical vent runs up to 180 equivalent feet with 4” diameter
      Quiet and Efficient Blower
      • Factory-installed 6-foot power cord with standard 3-prong male connector provided
      • Electrical requirements; 110/120 VAC power source, less than 5 amp draw
      Hot-surface Ignitor
      • More robust and reliable than standing pilot, and reduces energy consumption
      User-Friendly
      • State-of-the-art electronic gas control provides more precise temperature control
      • LED control light displays operation status and diagnostics information
      Design-Certified by CSA Group
      • Certified at 300 psi test pressure and 150 psi working pressure
      • Listed according to ANSI Z21.10.1-CSA 4.1 or ANSI Z21. 10.3-CSA 4.3 standards governing storage tank-type water heaters
      WARRANTY
      • 6-Year Limited Tank and Parts Warranty
    AO Smith
    See All AO Smith Products

    Specification Sheet

    Product Specifications Brochure Installation Manual Parts Diagram
    Basic Information
    MPN ? Manufacturer Part Number 100310865
    UPC / GTIN 671657251871
    Manufacturer AO Smith
    Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. ProLine
    Dimensions and Measurements
    First Hour Rating 100 - 125 Gallons
    Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 70-5/8"
    Length (Inches) ? The distance of the product's longest side, measured in inches. 33.12"
    Width (Inches) ? The horizontal measurement from left to right, measured in inches. 26"
    Depth (Inches) ? Depth 33-1/8"
    Gallons 75 Gallons
    Vent Size (Inches) 3"/4"
    BTU Input 76,000
    Weight ? Weight 277.00
    Characteristics and Features
    Warranty ? The terms and conditions of the warranty provided for the product from the manufacturer. 6 Years
    Side Connections w/ Side Connections
    Water Heater Type Residential
    Venting Power Vent
    Type Tall
    Water Connection Location Top
    Venting Type Power Vent
    Fuel Type Liquid Propane
    Energy Star No
    Warranty and Product Information
    Product Warranty 6 Years Tank / Parts Warranty
