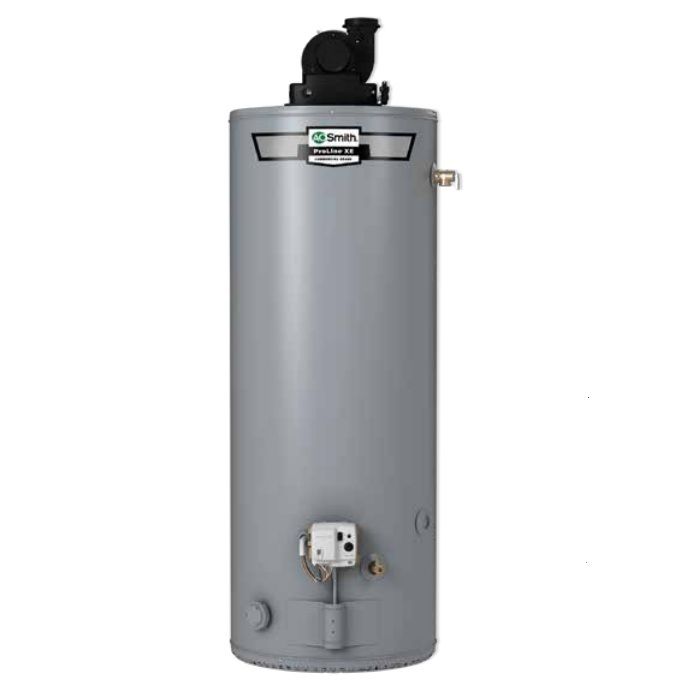

AO Smith GPVT-40LP Proline 40 Gallon Residential Liquid Propane Water Heater - Power Vent - 6 Year Warranty

PROLINE® POWER-VENT WATER HEATER

The ProMax® Power-Vent 40 and 50-gallon residential gas water heaters are equipped with A. O. Smith’s pateneted C3 Technology® design, ENERGY STAR® qualified models are also available, offering superior energy efficiency and operational cost savings. In addition A. O. Smith has engineered other enhancements into its power-vent design, for easier installation and maximum venting flexibility. A power-vent water heater provides an alternative to conventional vertical-vent models, which require the use of a metal vent. They provide a solution to potential venting problems in replacement applications and offer versatile options for placement of gas water heaters in residential new construction

INTELLI-VENT™ GAS CONTROL
• Equipped with a nearly indestructible silicon nitride hot surface ignitor – no standing pilot
• Advanced electronics for more precise control of water temperature and easy to under- stand system diagnostics
• Side-mounted gas connection simplifies installation
EXCLUSIVE POWER-VENT BLOWER
• Specifically designed and manufactured by A. O. Smith Electrical Products
• Equipped with 110/120 volt electrical system, rating 3 amps or less
• 6-foot cord with standard 3-prong male connector
DYNACLEAN™ DIFFUSER DIP TUBE
• Reduces harmful lime and sediment buildup; maintains efficiency and maximizes tank life
• Made from long-lasting PEX cross-linked polymer
EXCLUSIVE COREGARD ANODE ROD
• Aluminum anode with stainless steel core protects tank against corrosion
GREEN CHOICE® GAS BURNER
• Patented “Eco-Friendly” design reduces NOx emissions up to 33% and meets requirements for less than 40 ng/j for low NOx emissions
• PERMAGLAS® GLASS TANK COATING - Patented glass lining protects tank interior
LISTED BY UNDERWRITERS LABORATORIES
• Listed according to ANSI Z21.10.1 or 10.3-CSA 4.1 or 4.3 standards governing storage-type water heaters
• Additional code compliance: UBC, CEC, SBCC, CABO, HUD, BOCA National heaters codes, Current Edition ASHRAE/IESNA 90.1 and 2004 NAECA

VERSATILE POWER-VENT DESIGN

• 40 and 50-gallon models vent using 2", 3" or 4" Schedule 40 PVC, CPVC or ABS pipe
• Canadian installations require ULC S636 approved PVC or CPVC pipe for venting
• All models supplied with termination elbow and screens. See page 2 for complete informatio on vent distances and supplied elbows and screens for all models
Warranty
• 6-Year Limited Tank and Parts Warranty
