AO Smith GPDT-50 ProLine 50 Gallon Residential Natural Gas Water Heater - Power Direct Vent - 6 Year Warranty

SKU
SMIGPDT50

Click Here for Shipping Cost by Destination
Retail : $4,140.00 - $1526.83 =
$2,613.17 You Save (37%)

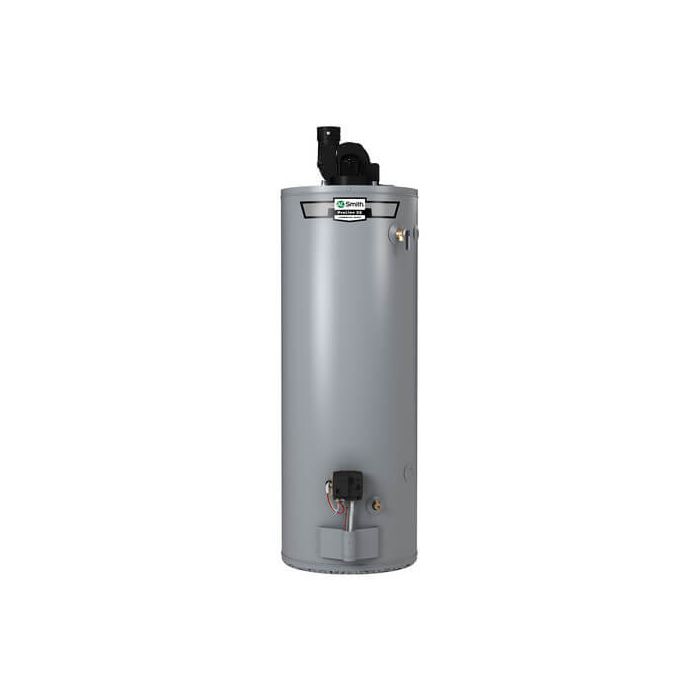

main product photo

Product details

AO Smith GPDT-50 Residential Natural Gas Water Heater, 50 Gallons, 45000 BTU, Power Direct Vent, 6 Yr Tank / Pts Warranty. New Model = SMIGPDX50, GPDX-50. Old Model = SMIGPD50, GPD-50

The ProLine XE Power Direct Vent gas water heater features a two-pipe combustion system that draws clean air from outside the home, eliminating any worries about indoor ventilation.

Featuring a 50-gallon (nominal) tank and a 40,000 BTU gas burner, the GPDT-50 Power Direct Vent delivers a first hour rating of 81 gallons and a recovery rate of 41 gallons per hour. With an 0.72 Uniform Energy Factor, this water heater is not ENERGY STAR qualified. It carries a 6-year limited warranty, and meets No emission Requirements emission requirements.

AO Smith Proline® XE High Efficiency Water Heater

PROLINE® XE HIGH EFFICIENCY NON-CONDENSING POWER DIRECT VENT

    ENERGY STAR® Qualified
    • All models (except GPDX 75L) meet the ENERGY STAR® requirement and may also qualify for local utility and rebate programs
    Power Direct Vent Design
    • Combined horizontal and vertical vent runs up to 180 equivalent feet with 4” diameter venting (ABS, PVC, CPVC and polypropylene)
    • Two-pipe sealed combustion system uses outside air, eliminating problems caused by insufficient indoor ventilation
    • Reduced NOx emissions comply with air quality management district regulations
    Hot-surface Ignitor
    • More robust and reliable than standing pilot, and reduces energy consumption
    User-Friendly
    • State-of-the-art electronic gas control provides more precise temperature control
    • LED control light displays operation status and diagnostics information
    • Built-in heat traps
    • Water inlet and outlet reduce the amount of heat lost through piping
    Design-Certified by CSA Group
    • Certified at 300 psi test pressure and 150 psi working pressure
    • Listed according to ANSI Z21.10.1-CSA 4.1 standards or ANSI Z21.10.3 CSA 4.3 standards governing storage tank - type water heaters governing storage tank-type water heaters
    Warranty
    • 6-Year Limited Tank and Parts Warranty
AO Smith
See All AO Smith Products

Specification Sheet

Product Specifications Brochure Installation Manual Parts Diagram
Basic Information
MPN ? Manufacturer Part Number GPDT-50
UPC / GTIN 671657192587
Manufacturer AO Smith
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. ProLine

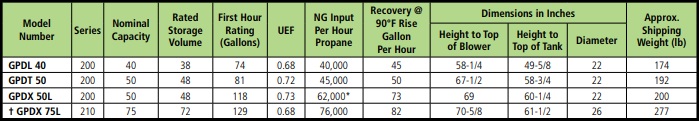

Dimensions and Measurements
First Hour Rating 93 Gallons
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 67-1/2"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 22"
Depth (Inches) ? Depth 29-7/8"
Gallons 50 Gallons
Vent Size (Inches) 2"/3"/4"
BTU Input 45,000
Weight ? Weight 195.00
Characteristics and Features
Warranty ? The terms and conditions of the warranty provided for the product from the manufacturer. 6 Years
Water Heater Type Residential
Venting Power Direct Vent
Type Tall
Water Connection Location Top
Venting Type Power Direct Vent
Fuel Type Natural Gas
Energy Star Yes
Warranty and Product Information
Product Warranty 6 Years Tank / Parts Warranty
