AO Smith GCN-75 Proline 75 Gallons Ultra-Low Nox High Recovery Natural Gas Water Heater

SKU
SMIGCN75

Out of Stock
Click Here for Shipping Cost by Destination
Retail : $3,616.00 - $1333.58 =
$2,282.42 You Save (37%)

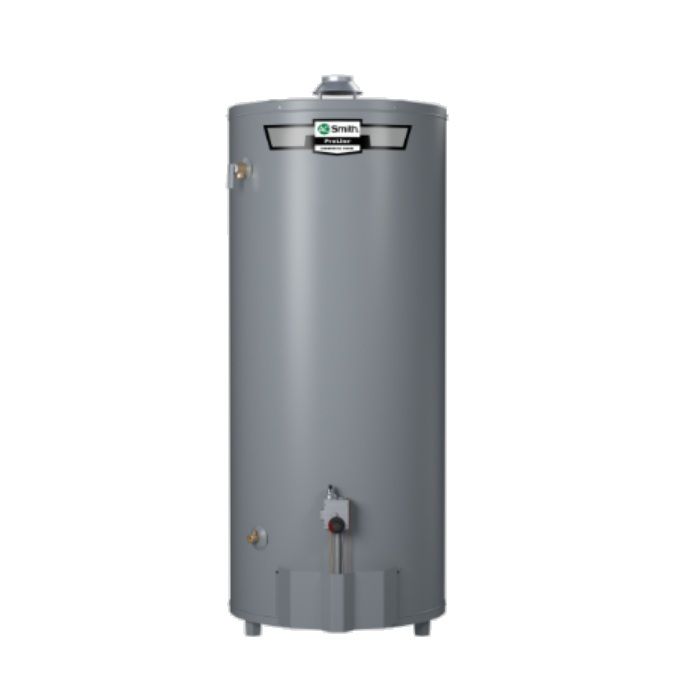

main product photo

Product details

AO Smith GCN-75 ProLine 75 Gallons Ultra-Low Nox High Recovery Gas Water Heater

AO Smith Proline® Ultra-Low NOx Water Heater

PROLINE® ULTRA-LOW NOx HIGH RECOVERY COMMERCIAL-GRADE RESIDENTIAL

    FULLY AUTOMATIC CONTROLS WITH SAFETY SHUTOFF
    • Accurate, dependable control system requires no electric connections. Fixed automatic gas shutoff device for added safety. Not recommended for 180°F sanitizing
    HEAVY GAUGE STEEL JACKET
    • Finished with baked enamel over bonderized undercoat
    • GlassLinde Tank - Maximizes tank life
    FOAM INSULATION
    • Saves fuel, helps reduce standby heat loss
    ULTRA-LOW NOX EMISSIONS
    • Complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements of 14 ng/j or 20 ppm
    EASY-TO-INSTALL
    • Completely factory-assembled. Only gas, water and vent connections need to be made. All connections are located in front and top of heaters for ease-of-installation and service
    DRAFT HOOD
    • Low profile draft hood furnished as standard equipment
    COREGARD™ ANODE ROD
    • Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
    • Maximum Working Pressure - 150 psi
    • Maximum Gas Inlet Pressure - 14” W.C

FEATURES

    • Anodic protection
    • Equipped with gas pressure regulator
    • Integral automatic gas shutoff system prevents excessive water temperature
    • CSA certified and ASME rated T&P relief valve
    • The GCN-75 comes standard with side loop fittings for use with hydronic heating applications
    Warranty
    • 6-Year Limited Tank and Parts Warranty
AO Smith
See All AO Smith Products

Specification Sheet

Product Specifications Installation Manual
Basic Information
MPN ? Manufacturer Part Number GCN-75
UPC / GTIN 671657202149
Manufacturer AO Smith
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. ProLine
Dimensions and Measurements
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 60.75"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 31.25"
Dimensions ? Dimensions 29" L X 31.25" W X 60.75" H
Gallons 75 Gallons
BTU Input 75,000
Weight ? Weight 267.00
Characteristics and Features
Water Heater Type Residential
Venting Atmospheric Vent
Type Short
Fuel Type Natural Gas
