AO Smith DEL-20-4KW-208V Dura-Power 20 Gallon Commercial Electric Water Heater - 3 Year Warranty

SKU
SMIDEL20S4KW208

Out of Stock
Click Here for Shipping Cost by Destination
Retail : $1,267.00 - $80.33 =
$1,186.67 You Save (6%)
4KW
AO Smith DEL-15-3KW-208V Dura-Power 15 Gallon Commercial Electric Water Heater - 3 Year Warranty
Selected
AO Smith DEL-20-4KW-208V Dura-Power 20 Gallon Commercial Electric Water Heater - 3 Year Warranty
AO Smith DEL-20-6KW-208V Dura-Power 20 Gallon Commercial Electric Water Heater - 3 Year Warranty
4KW
AO Smith DEL-15-3KW-208V Dura-Power 15 Gallon Commercial Electric Water Heater - 3 Year Warranty
Selected
AO Smith DEL-20-4KW-208V Dura-Power 20 Gallon Commercial Electric Water Heater - 3 Year Warranty
AO Smith DEL-20-6KW-208V Dura-Power 20 Gallon Commercial Electric Water Heater - 3 Year Warranty

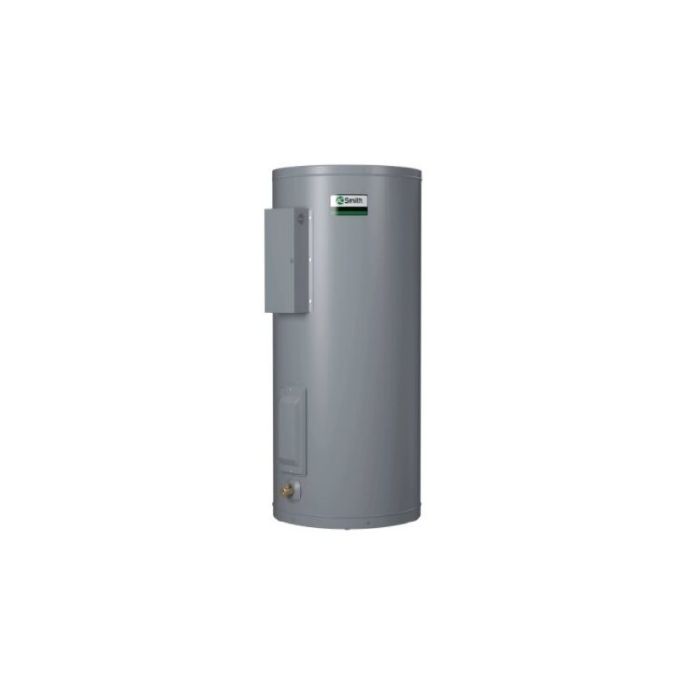

main product photo

Product details

AO Smith DEL-20-4KW-208V Dura-Power 20 Gallon Commercial Electric Water Heater - 3 Year Warranty

AO Smith DURA POWER Water Heater

Designed for use as a recovery heater having its own storage tank. Available in upright standard models (DEN) and lowboy models (DEL)

    GLASSLINED TANK
    • Thirteen sizes;6 thru 119 gallon capacity.Tank interior is coated with glass specially designed by A. O. Smith for water heater use.
    ELEMENTS
    • Zinc plated copper sheaths for longer life. Medium watt density means lower surface temperature to minimize scale build-up and more surface to heat water. Element sizes from 1.5 to 6 KW. Maximum input 12 KW (see chart).
    STANDARD VOLTAGES
    • 120, 277 single phase and 208, 240 and 480V unbalanced three-phase delta; easily converted to single-phase at terminal block (except 208V with 5500 watt elements). Single element heaters, single-phase only.
    TERMINAL BLOCK
    • Factory-installed. Just bring the service to heater and connect to block. Terminal block not supplied on 120V & 277 volt models. (No junction box on DEL6-20)
    CONTROLS
    • Temperature control (adjustable through a range of 110° to 170°F on single element and 120° to 181°F on dual element) and manual reset high temperature cutoff per element
    COMPLIANCE
    • Meets the standby loss Requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1.
    LIMITED WARRANTY OUTLINE
    • If the tank should leak any time during the first three years, under the terms of the warranty, A. O. Smith will furnish a replacement heater; installation, labor, handling and local delivery extra. THIS OUTLINE IS NOT A WARRANTY. For complete information consult the written warranty or A. O. Smith Water Products Compan
AO Smith
See All AO Smith Products

Specification Sheet

Product Specifications Installation Manual
Basic Information
MPN ? Manufacturer Part Number DEL-20-4KW-208V
Manufacturer AO Smith
Series ? A manufacturer's grouping of items that match, coordinate, or complement each other. Dura-Power
Dimensions and Measurements
Kilo Wattage 4KW
Height (Inches) ? The vertical measurement from bottom to top, measured in inches. 22-1/4"
Width (Inches) ? The horizontal measurement from left to right, measured in inches. 21-3/4"
Depth (Inches) ? Depth 15-3/8"
Gallons 20 Gallons
Voltage 208V
Weight ? Weight 78.00
Characteristics and Features
Warranty ? The terms and conditions of the warranty provided for the product from the manufacturer. 3 Years
Water Heater Type Commercial
Water Connection Location Top
Fuel Type Electric
Energy Star No
Warranty and Product Information
Product Warranty 3 Years Tank
